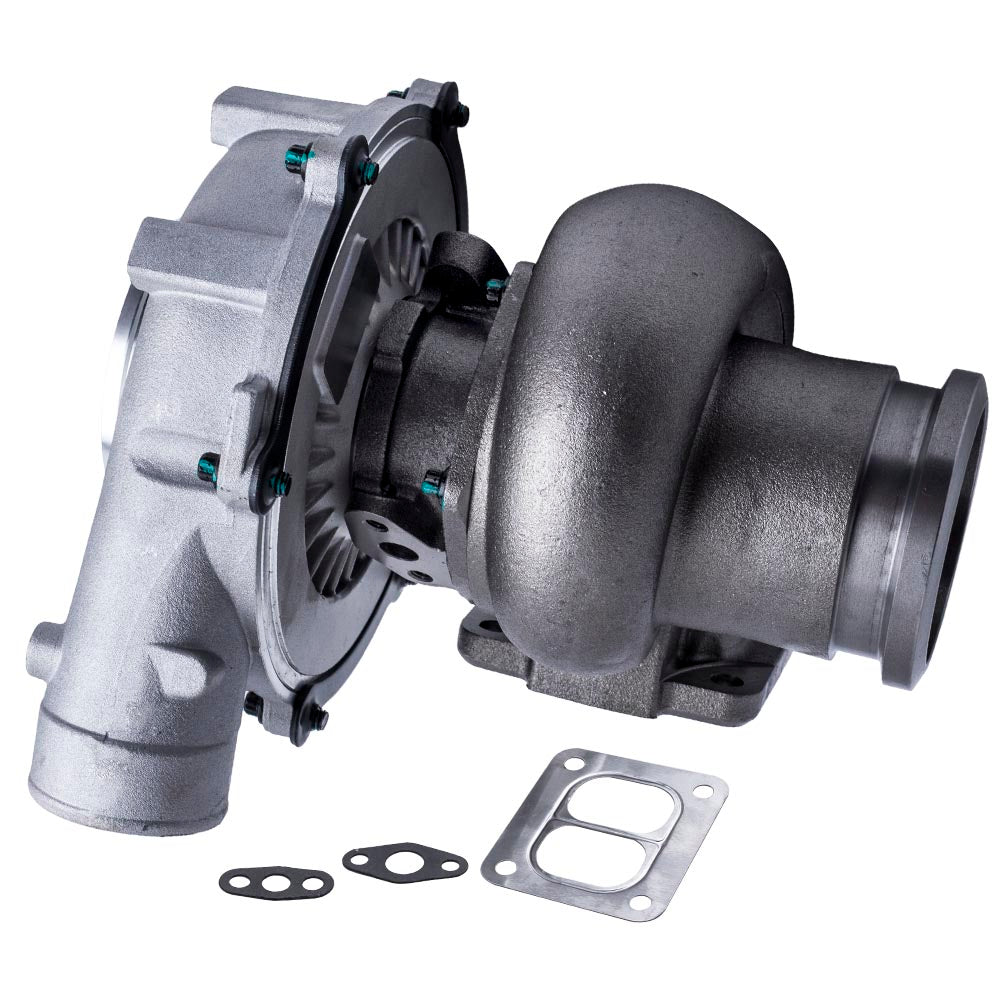

Turbocharger International Navistar DT466 Engine 1993-06 1825632RX1
Application
for International Highway Truck Bus Navistar DT466 7.6L Engine 1993-2006
Replace & Part Number
2506765C91, 1825632RX1, 1826344C93, 1826344C91, 1826344092
1825632C93, 1825632091, 1806077C91, 1806078C91, 1806079C91
4097700019, 409770-0019, 4097700020, 409770-0020, 4097700021
409770-0021, 4097700022, 409770-0022, 4097705019, 409770-5019
4097705020, 409770-5020, 4097705021, 409770-5021, 4097705022
409770-5022, 4097709019, 409770-9019, 4097709020, 409770-9020
4097709021, 409770-9021, 4097709022, 409770-9022, 4307268R91
684663C92, 684937C91, 691020C91, 691059C91, 691409C91, 691409C92
735095C91, 735270C91, 991522C91, 991523C91, 991524C91, A184787
751400-0001, 751400-5001S, 466803-0003, 466803-5003, 466803-5003S
466803-0008, 466803-5008, 466803-5008S, 466803-0012, 466803-5012
466803-5012S, 471097-0003, 471097-5003, 471097-5003S, 471097-0008
471097-5008, 471097-5008S, 471097-0010, 471097-5010, 471097-5010S
715134-0005, 715134-5005, 715134-5005S, 751363-0001, 751363-5001
1825632092, 1826344RX1, 1836093C92, 2506782C91
751363-5001S, 684663C91, DT466, DT466E, DT466P
Specification
Horsepower: Up to 275hp
Turbo Model: GTA3776B, GTA3782B
Fit Engine Type: DT466, DT466E, DT408P, DT466P, I530E
Turbine Inducer: 72.72 mm
Turbine Exducer: 64.06 mm
Turbine Weehl: 10 Blades
Compressor Trim: 52
Inducer: 59.2 mm
Exducer: 82.04 mm
Wheel: 6+6 Blades
Fuel: Diesel
Cooling: oil cold
Package includes: 1x DT466 Turbocharger
Warranty: one year warranty for any manufacturing defect
Note
1. professional install is highly recommend
2. The turbo is not a model with internal wastegate
