Turbocharger Hyundai Santa Fe 2.2 d 150HP D4EB, CRDi, GLS, 4x4 2005-
Application
Compatible for Hyundai Santa Fe 2.2 d 150HP D4EB, CRDi, GLS, 4x4 2005-
Compatible for Hyundai Santa Fe 2.2 CRDi D4EB 150HP 110KW from Dez.2005
Compatible for Hyundai Santa Fe 2.2 CRDi D4EB 155HP 114KW from Dez.2006
OE/Part number
49135-07300, 49135-07100, 49135-07302, 49135-07301, 28231-27800
Specification
Turbo Model: TF035
Engine: D4EB
Cooling Type: Oil Cooled
Bearing Type: Floating Bearing
Horsepower: Up to 155 HP
Condition: New

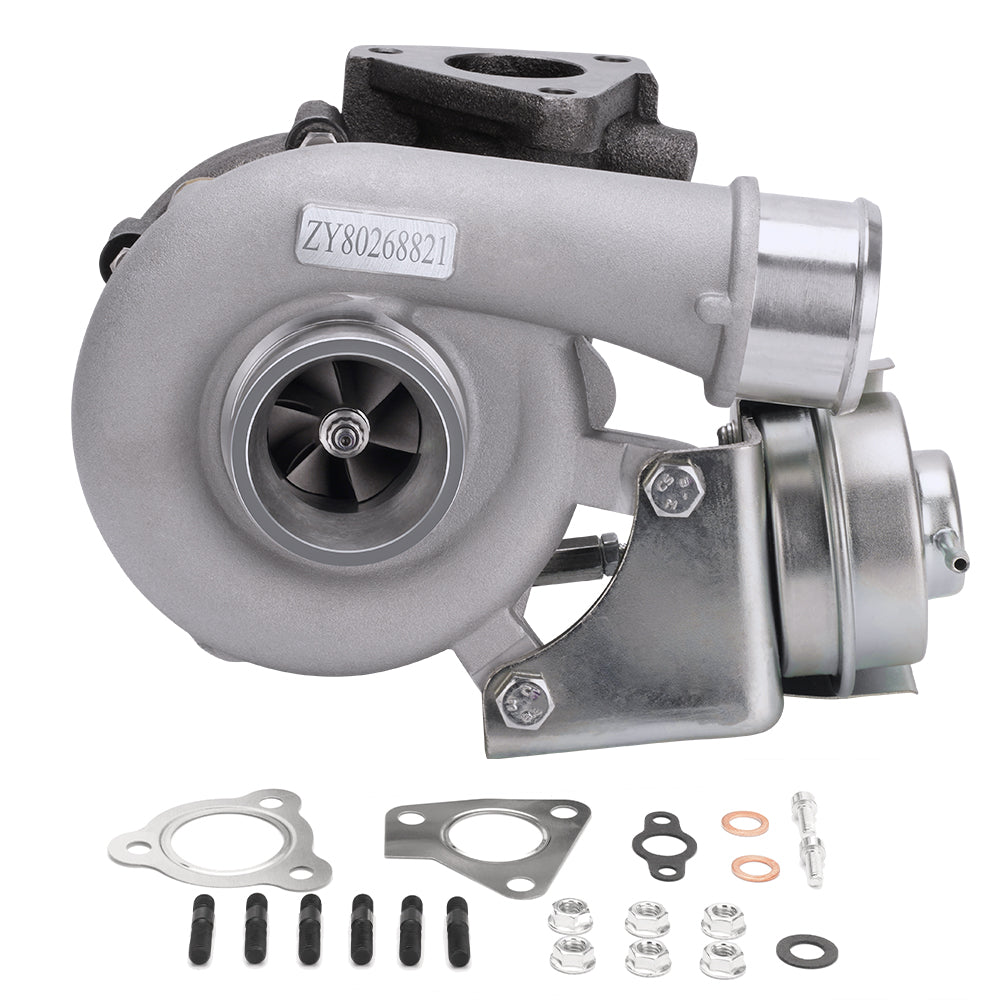

Accessories: You will get exactly as shown in the picture above
Package Size: 26x 24 x 23 cm
Package Weight: 6600g
Feature
Product Material
1\. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
2\. Steel turbine wheel: K418 alloy - high oxidation stability and resistance
up to 900℃
3\. Compressor housing: ZL104 aluminium with lightweight
4\. Compressor wheel/blades: Cast aluminium blades – superior airtightness &
corrosion resistance
Product Performance
1\. OEM quality and size with little modification
2\. Rich experience in turbo production and own factory
3\. High-Speed oil seal ring and Precision clearance
Product Certification: TÜV ISO 9001 CERTIFIED
Technology Advantage:
1\. 100% balancing Test by TURBO TECHNICS VSR3
2\. G3-min-Flow VNT Turbo testing
3\. Advanced Actuator Tester/Programmer
Note
Please confirm your original turbo PART NUMBER before Purchasing
Professional installation is highly recommended
Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
Product Disclaimer:
Emissions Equipment Tampering Warning: In many states, tampering with your vehicle’s emissions equipment is unlawful. Our products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway.
Using our products for street/road use on public roads or highways is prohibited by law unless a specific regulatory exemption exists (more information can be found on the SEMA Action Network website www.semasan.com/emissions for state-by-state details in the USA).
CARB-Restricted Areas: CARB-Restricted products, will not be shipped to state of California under any circumstatences.
Official Air Resource Board Link: ARB State Adoption Link
Customer Responsibility: It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations. Please check with your local vehicle authority before purchasing, using, or installing any of our products.
By proceeding with the purchase and use of our products, customers affirm their commitment to adhere to the terms outlined in this comprehensive product disclaimer. We reserve the right to update this disclaimer as necessary.
