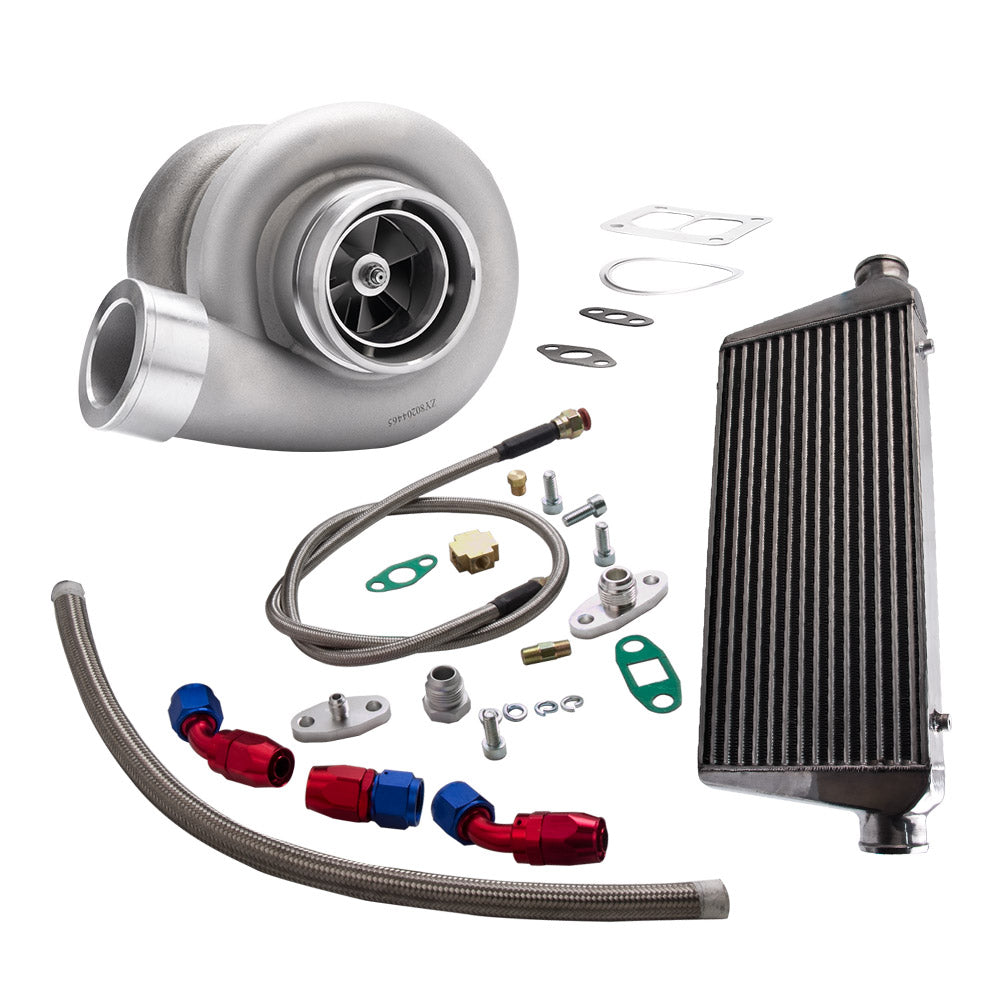

Turbocharger GT45 T4 V-Band A/R .66 1.05 + 600x300x76 Intercooler + Oil Line Kit
Specification
Turbocharger
Perfect for all 3.0L-6.0L engine
Exhaust (Turbo Manifold) Flange: T4 4 Bolt Flange
Exhaust (Downpipe) Flange: V-Band Flange
Wastegate: External Wastegate
Horse Power: Boost Horse Power up to 600+ BHP
Turbo Height: 243cm
Turbo Width: 273cm
Compressor
Trim: 50
Inducer Diamter: 69mm
Exducer Diamter: 98 mm
A/R:0.66
Turbine
Trim:78
Inducer Diamter: 88mm
Exducer Diamter: 77.5 mm
A/R:1.05
Oil Inlet: M9 & 2M81.25
Oil Outlet: M19 & 2M81.25
Oil Feed & Return Line
Oil Return Line: Length: 550mm || Inner Diameter: 21mm
Oil Feed Line: Length: 1000mm || Inner Diameter: 14mm
Intercooler
Inlet / outlet size : 3"
Core Size: 600 x 300 x 76mm / 24" x 12" x 3"
Overall Size: 780 x 330 x 76mm / 31" x 13" x 3"
Inlet/Outlet: 76MM
Core design: Tube & Fin
Condition: New
Bearing Type: Floating Bearing
Warranty: one year warranty
Accessories: You will get exactly as shown in the picture above
Notice
Professional installation is highly recommended (No Instruction Included).
For any needs please contact us.
This is universal application turbo, so modification might be required for some vehicles.
Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
Make sure the oil drain line is lower than the turbo itself.
Gasoline car must install a water cooling device to avoid overheating.
Ensure exhaust outlet are well sealed by welding.
Product Disclaimer:
Emissions Equipment Tampering Warning: In many states, tampering with your vehicle’s emissions equipment is unlawful. Our products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway.
Using our products for street/road use on public roads or highways is prohibited by law unless a specific regulatory exemption exists (more information can be found on the SEMA Action Network website www.semasan.com/emissions for state-by-state details in the USA).
CARB-Restricted Areas: CARB-Restricted products, will not be shipped to state of California under any circumstatences.
Official Air Resource Board Link: ARB State Adoption Link
Customer Responsibility: It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations. Please check with your local vehicle authority before purchasing, using, or installing any of our products.
By proceeding with the purchase and use of our products, customers affirm their commitment to adhere to the terms outlined in this comprehensive product disclaimer. We reserve the right to update this disclaimer as necessary.
