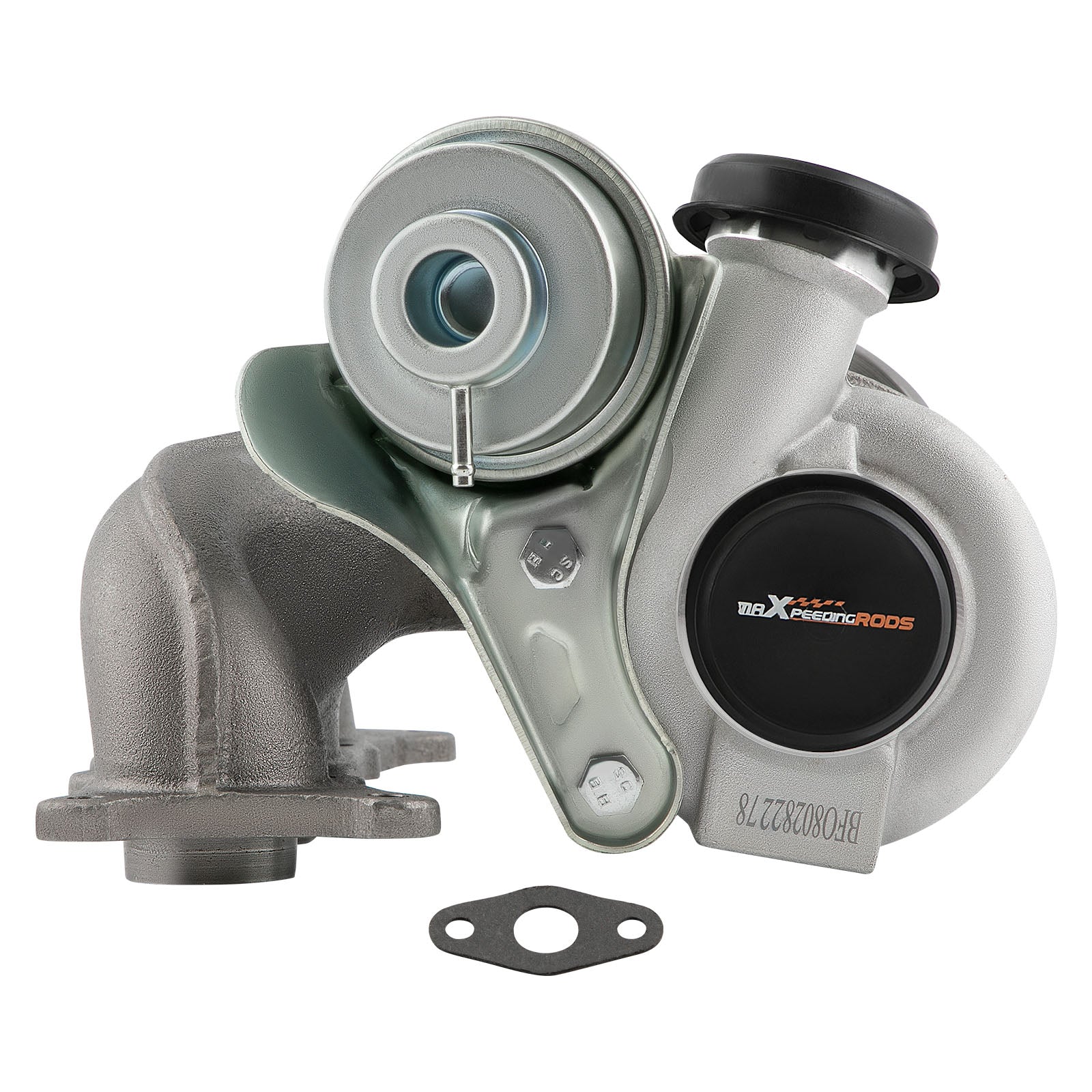

Turbocharger BMW N54 3.0L Turbo 135i 335i 335xi 335is N54B30 49131-07041
Applications
Compatible for BMW 135i(E82/E88) Engine N54B30 3.0L 2006-2011
Compatible for BMW 335i(E90/E91/E92/E93)(E82/E88) Engine N54B30 3.0L 2006-2011
Replacement & Part Number
49131-07041, 49131-07065, 49131-07066,
49131-07067, 49131-07068, 49131-07069,
49131-07075, 49131-07076, 49131-07077,
49131-07078, 49131-07079, 49131-07161,
49131-07170, 49131-07180, 49131-07205,
49131-07206,
7649290, 7593016, 7583864, 7563686,
4564711, 7649289, 7593015,7583863,
7563685, 4564710, 11654564710
11657649290, 11657593016, 11657583864,
11657563686, 11654564711, 11657563685,
11657649289, 11657593015, 11657583863,
Specification
Turbo Model: TD03L4-10TK3-4.9, TD03
Engine Code : N54 (Cyl. 1-3), N54B30B, N55B30A, N54B30A, N54B30T
Cooling Type: Water+Oil Cooling
Fuel: Gasoline
Bearing Type: Journal Bearing/Floating Bearing
Horse Power: 222/225/306 HP
Actuator Type: Actuator
Turbo Type: Individual
Position: Front, Right
Universal Fitment: No
Finish: Matte
Condition: New
Accessories: You will get what you can see in the pictures exactly
Package Size:30x28.5x26 cm
Package Weight: 6700g
Package included
1x Right Side Turbocharger
1x Oil/Water port gasket
Features
Product Material
1\. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
2\. Steel turbine wheel: K418 alloy - high oxidation stability and resistance
up to 900℃
3\. Compressor housing: ZL104 aluminum with lightweight
4\. Upgrade 6+6 blades billet compressor wheel: forged full-machined
billet aluminum compressor wheels with a larger horsepower range and better
boost response
Product Performance
1\. OEM-quality and size with little modification
2\. Rich experience in turbo production and own factory
3\. High-Speed oil seal ring and Precision clearance
Technology Advantage:
1\. 100% balancing Test by TURBOTECHNICS VSR3
2\. G3-min-Flow VNT Turbo testing
3\. Advanced Actuator Tester/Programmer
Note
Please confirm your original turbo PART NUMBER before Purchasing
Professional installation is highly recommended
Before installation, please check the oil supply sufficient, clearnliness the air filter and gasoline , and the gasoline air tightness.
