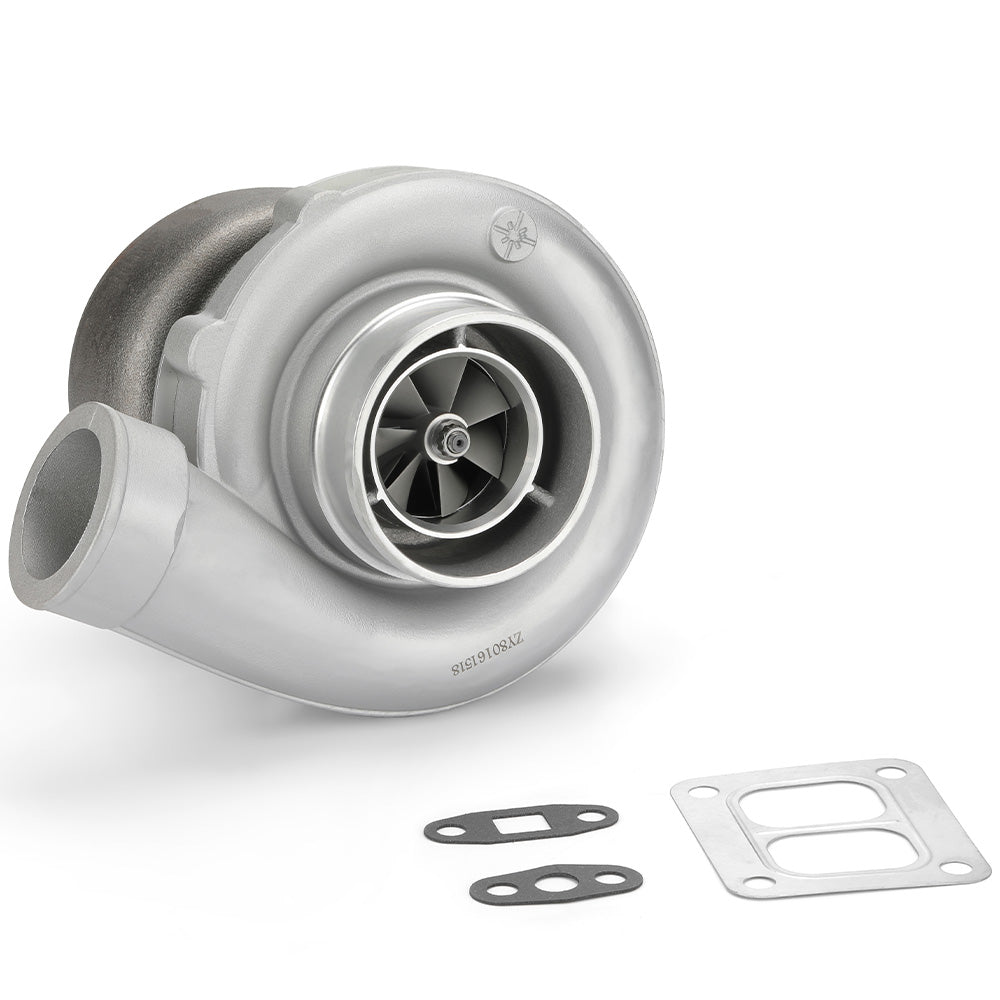

Turbo Turbocharger S300SX3 66 73 T4 Twin Scroll .91 A/R 800 HP Journal Bearing
Introduction
Are you trying to put together a cost effective turbocharger system for your
vehicle? You should know a turbocharged car has about 20-25% more total power
than a non-turbo car of the same year, make and model. Well, Maxpeedingrods
universal turbocharger got just what you're looking for. Don't hesitate to get
a turbo to boost your car's power.
Application:
Horse Power: Up to 320-800hp
Specification
Exhaust Inlet (Turbo Manifold) Flange: T4
Exhaust Outlet (Downpipe) Flange: V-Band
Turbine Trim: 85
Turbine A/R: 0.91
Turbine Inducer Diameter: 80mm/3.14in
Turbine Exducer Diameter: 73mm/2.9in
Compressor Trim: 47
Compressor Air Inlet Size: 77.5mm
Compressor Air outlet Size: 51.2mm
Compressor Inducer Diameter: 66mm/2.6in
Compressor Exducer Diameter: 96mm/3.8in
Bearing Type: Floating bearing
Trust bearings: 270 Degrees
Cooling Type: Oil cooling
Warranty: one year for any manufacture defects
Features
Turbine housing uses ductile iron QT450-10 Can withstand temperatures up to 700 degrees Celsius.
Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius.
Cast aluminium blades with good gas tightness and corrosion resistance.
Capable of Boosting Horse Power up to 400BHP.
Notice:
Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
Make sure the oil drain line is lower than the turbo itself.
Gasoline car must install a water cooling device to avoid overheating.
Ensure exhaust outlet are well sealed by welding.
Please check the specifications carefully before buying. If you are not sure about these information, please feel free to contact us.
This is universal application turbo, so modification might be required for some vehicles.
Professional installation is highly recommended (No Instruction Included).
