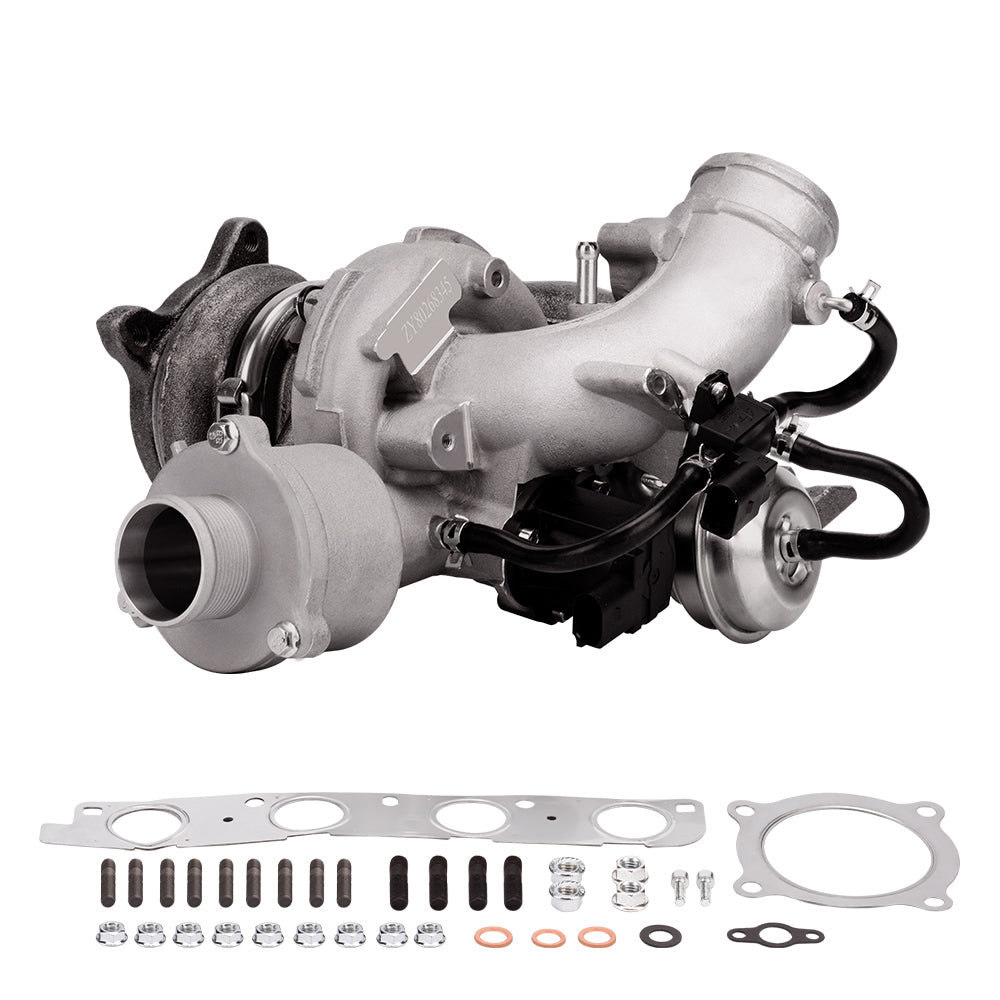

Turbo Charger AUDI A4 A5 Q5 2.0 TFSI 2009 -2012 Quattro 180-211hp 06H145702L
Please confirm your original turbo part number before purchasing. The part
number is located on the turbo NAMEPLATE of the compressor housing, you can
check it with your mechanic as well.
Applications:
Compatible for Audi A5 Coupe, A5 SportBack 2.0 TFSI 2009-2012
Compatible for Audi A5 Cabriolet 2.0 TFSI 2010-2012
Compatible for Audi Q5 2.0L, S4 Avant, S5 Coupe, S5 Sport Back 2.0 TFSI
2009-2012
Compatible for Audi A4, A5, A6, S4, S5 2.0 TFSI 2008-2010
Compatible for Volkswagen Passat 2.0 TSI 2008-2010
Compatible for Seat Exeo 2.0 TSI 2008-2010
Compatible for Audi A4 2.0p 180-211bhp 2008- CAEA, CDNB, CDNC, CFKA, 8K2, 8K5,
8KH, B8, TFSI, for Quattro, Allroad
Compatible for Audi A5 2.0p 180-211bhp 2008- CAEA , CAEB, CDNB, CDNC, 8F7,
8T3, 8TA, TFSI, for Quattro
Compatible for Audi Q5 2.0p 180-211bhp 2008- CDNB, CDNC, 8R, TFSI,for Quattro
Compatible for Seat Exeo 2.0p 211bhp 2010- CDND, 3R2, 3R5, TFSI
(Note: this turbo is not compatible for Audi A4 Quattro Base Sedan 4-Door
2.0L 1984CC 121Cu. In. l4 GAS DOHC 2012)
Part Number & OEM Number:
06H145702L , 06H 145 702 L , 06H 145 702L, 06H145702LV ,
06H145702LX, 06H145702S , 06H 145 702 S , 06H 145 702S,
06H145702SV , 06H145702SX, 06H145702G , 06H 145 702 G ,
06H 145 702G , 06H145702GV , 06H145702GX, 06H145702Q ,
06H 145 702 Q , 06H 145 702Q , 06H145702QV , 06H145702QX,
06H145702R , 06H 145 702 R , 06H 145 702R , 06H145702RV ,
06H145702RX, 06H145701Q , 06H 145 701 Q , 06H 145 701Q ,
06H145702T , 06H145702TV, 06H145702TX, 5303-988-0291,
53039700291, 5303-970-0291 , 53039880291
Feature:
Product Material
1\. Turbine housing : Ductile iron QT450-10- temperature resistant up to 700℃
2\. Steel turbine wheel: K418 alloy - high oxidation stability and resistance
up to 900℃
3\. Compressor housing: ZL104 aluminum with lightweight
4\. Compressor wheel/blades: Cast aluminium blades – superior air tightness &
corrosion resistance
Product Performance
1\. OEM-quality and size with little modification
2\. Rich experience in turbo production and own factory
3\. High-Speed oil seal ring and Precision clearance
Technology Advantage:
1\. 100% balancing Test by TURBOTECHNICS VSR3
2\. G3-min-Flow VNT Turbo testing
3\. Advanced Actuator Tester/Programmer
Specification:
Turbo Model: RHF5
Engine Code: CDNB, CDNC, CAEA, CAEB, CFKA, TFSI
Cooling Type: Water & Oil Cooled
Bearing Type: Floating Bearing
Trust Bearing: 360 degree
Hosepower: Up to 160HP
Turbo Type: Individual
Condition: New
Package Size: 49 x 38 x 26 cm
Package Weight: 12850g
Warranty: one year warranty for any manufacturing defect
Accessories: You will get exactly as shown in the picture above
Note:
Please check the Turbo Model, Turbo Part Number and OEM Part Number on your original Turbo to make sure this turbo is the right one for your engine. If you are not sure about these information, Please feel free to contact us
Professional installation is highly recommended (No Instruction Included)
