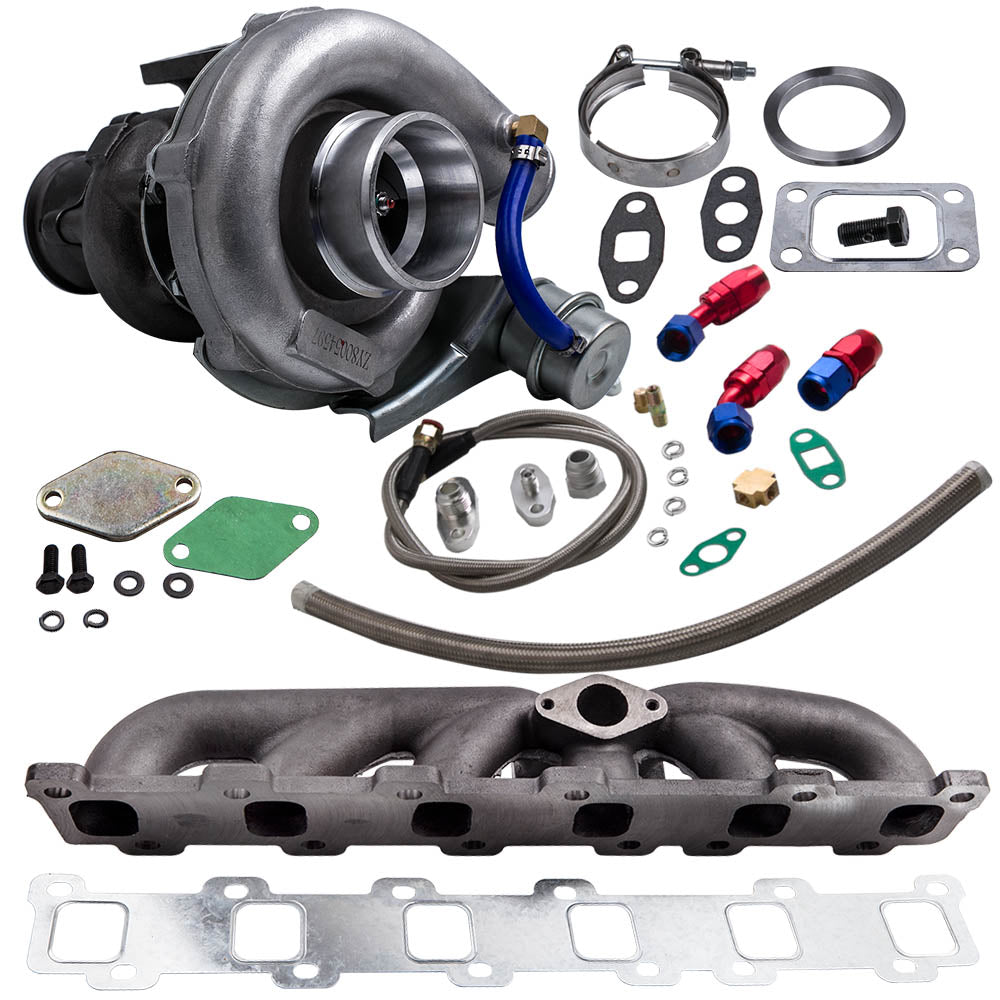

Turbo and Manifold and Oil line Kit Nissan Patrol GR GQ Y60 4.2 L TB42S TB42E
Application
\- Compatible for Nissan Safari compatible for Patrol 4.2L TD42 TD42T1 GQ Y60
\- For TB42, TD45, TB45 engine, as far as we know, the port configurations are
the same. Please give us yourmessagefor the picutre with dimensions and we
suggest you to double confirm the fitment with a mechanic before buying.
Turbo [flange:T3](flange:T3)
Maximum PSI 18（1.2Bar）
Feature
-Manufactured from high quality cast iron for durable usage and sound dampening
-Dimensional accuracy, durability, application specific design and corrosion resistant features
-Tubes sized and shaped to match cylinder-head exhaust port
\- Special surface treatment to resist corrosion for an increase in power and
performance
-Fullytests under extreme conditions to withstand high temperature and long-life use
-Quality fully guaranteed and professional installation recommended
Specification
Mount type:top mount / high mount
External Wastegate:38mm. You can plate it off if intending to use internally
wastegated Turbo (The blocking plate is included as shown in the picture)
Flange: T3
Cooled Type: Oil cooled
Bearing: Journal bearing
Turbine port: V band
Waste gate actuator: Adjustable from 7.5psi - 14.53 psi
Horse Power: 300-400 HP
Compressor Wheel: A / R: 0.5 ||Ind:50.5 mm|| Exd:76 mm|| Trim: 44.2
Turbiner Wheel: A / R:0.63 ||Ind:65.5 mm|| Exd:55.9 mm|| Trim: 72.8
Oil Feed Oil Return Lines Details
Oil return line length: 550mm
Oil return line inner diameter: ¢21
Oil feed line length: 1000mm
Oil feed line inner diameter: ¢14
Oil Inlet: M121.25 & 2M81.25
Oil Outlet: 2M81.25
Notice
\- Many dealers and customers have bought this kit. According to their
feedbacks, they match well. However, modification may be required.
\- This oil line kit is an aftermarket kit. Not all the component parts will
be direclt bolt on your car. You may still need some accessaries of your OEM
oil line kit.
\- No instruction will be included; professional installation and alignment is
suggested.
\- Please feel free to contact us for whatever we can help
