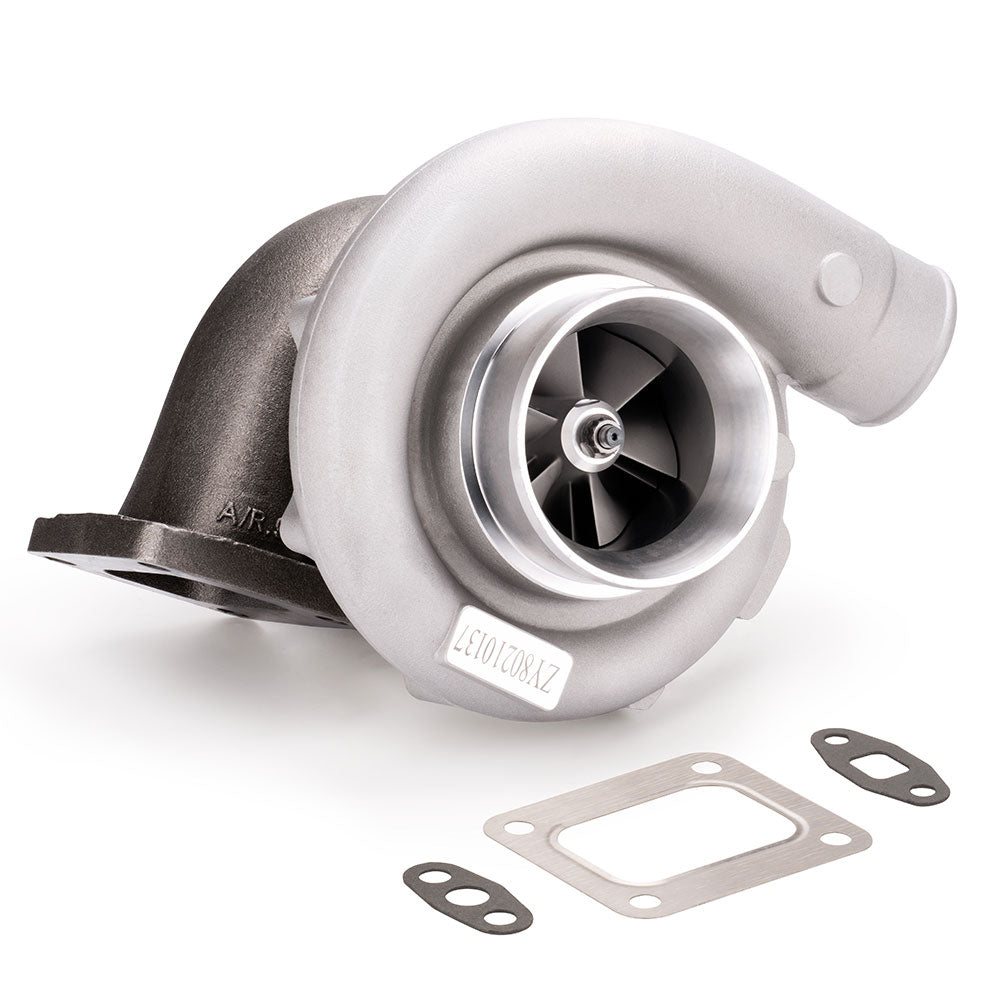

T76 Turbo Turbocharger T4 Flange .96 A/R P Trim 800+ HP 76mm Compressor
Introduction
Are you trying to put together a cost effective turbocharger system for your
vehicle? You should know a turbocharged car has about 20-40% more total power
than a non-turbo car of the same year, make and model. Well, Maxpeedingrods
universal turbocharger got just what you're looking for. Don't hesitate to get
a turbo to boost your car's power.
Application
Universal turbo for V6 V8 Cars，Perfect fit for Above 3.0L Engines, 6/8
cylinder
Horse Power: Boost Horse Power up to 500BHP
Specification
Exhaust Inlet (Turbo Manifold) Flange: T4 Flange
Exhaust Outlet(Downpipe) Flange: V-Band
Turbine Inducer Diameter: 73.5
Turbine Exducer Diameter: 64.3
Turbine Trim: 76.5
Turbine A/R: 0.96
Compressor Trim: 56.1
Compressor Inducer Diameter: 76.6
Compressor Exducer Diameter: 102.3
Oil Inlet: 1/4"-19 & M8H
Oil Outlet: 2M81
Compressor A/R: 0.8
Inner diameter: 91.95mm
Outer diameter: 74.5mm
Bearing: Wet Float
Cooling Type: Oil Cooled
Warranty: one year for any manufacture defects
Features
Turbine housing uses ductile iron QT450-10 Can withstand temperatures up to 700℃.
Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900℃.
Cast aluminium blades with good gas tightness and corrosion resistance.
Capable of Boosting Horse Power up to 500BHP.
Notice
Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
Make sure the oil drain line is lower than the turbo itself.
Gasoline car must install a water cooling device to avoid overheating.
Ensure exhaust outlet are well sealed by welding.
Please check the specifications carefully before buying. If you are not sure about these information, please feel free to contact us.
This is universal application turbo, so modification might be required for some vehicles.
Professional installation is highly recommended(No Instruction Included).
