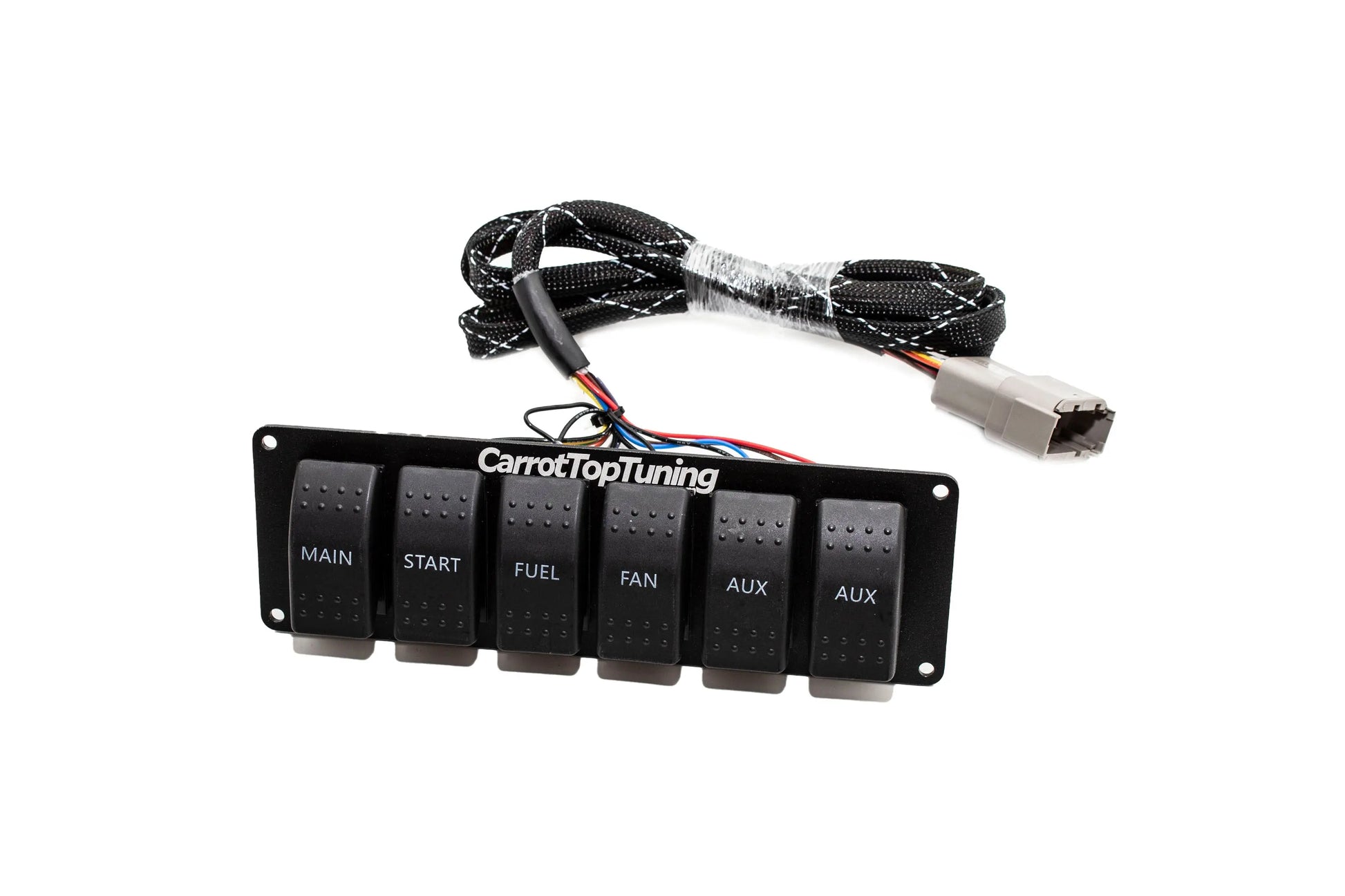

Introducing the Carrot Top Tuning (6 Position) Switch Panel, carefully designed to meet your needs for dedicated racecars:
Consists of 6 Water Resistant Rocker 20A 12V Switches: 1 Master/Ignition switch, Momentary Starter switch, and 4 On-Off switches.
The aluminum bezel measures 19.5cm in width and 63mm in height.
Crafted with high-quality TXL wire and heat shrink tubing for durability and reliability.
Comes with a 12 pin DTM connector, and when purchased separately, the mating connector is included.
The switch configurations are as follows:
The Main switch is configured for high-side activation.
The START momentary switch is configured for low-side activation.
The remaining on/off switches consist of 3 low-side activated switches and 1 high-side activated switch.
These switches are ideal for controlling pumps or motors. The low-side switches are rated up to 8A, while the high-side switch can handle up to 20A.
For a seamless integration, we recommend pairing this product with our Fuse and Relay Box, the Carrot Top Tuning Race Fuse/Relay Box. They work together flawlessly.
-B Series Fuse Box
-K Series Fuse Box
Experience the convenience and functionality of the Carrot Top Tuning (6 Position) Switch Panel for your electrical control needs.
