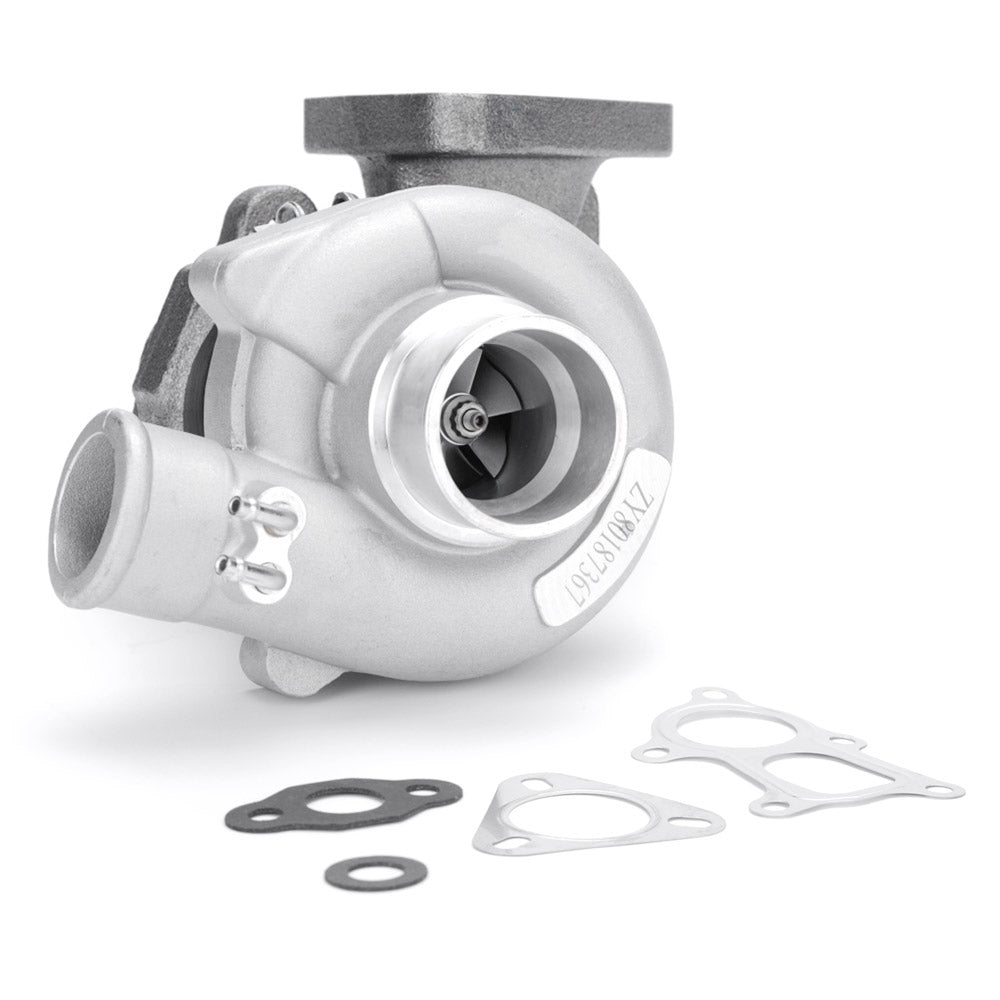

Mitsubishi Pajero Shogun 2.5 TD 4D56TD 100HP 73KW Turbo Charger TD04-11B
Introduction
Looking to boost your car's horsepower? Is your car's original turbocharger
not performing well or need replacing? Maxpeedingrods stocks all the best OEM-
quality turbochargers and turbo parts to give your car the power, performance,
and reliability you deserve. Maxpeedingrods aftermarket replacement turbos
provide the perfect solution by delivering a high-quality turbo at a budget-
friendly price.
Application
Compatible for Mitsubishi Pajero II; PAJERO 2.5L 4D56TD/4D56Q/4D56SJ 87 - 99
Compatible for Mitsubishi MONTERO 2.5L 4D56TD/4D56Q/4D56SJ 87 - 99
Turbo Model
TD04, TDO4-11G/4
Turbo Part Number & OEM Number
49177-02500, 4917702500,
49177-02501, 4917702501,
49177-02510, 4917702510,
49177-02511, 4917702511,
MD187208, MD170563,
MD187211, MD155984,
Note: this oil cooled turbo could be replaced by
49177-02513/49177-02512(water+oil cooled model), but need to close water hole.
Feature
Turbine housing adopts ductile iron QT450-10 able to withstand temperatures up to 700℃.
Steel Turbine Wheel constructed from K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900℃.
Cast aluminium blades with good air tightness and corrosion resistance
OEM-quality and size with little modification
Specification
Cooling Type：Oil Cooling
Bearing Type: Journal Bearing / Floating Bearing
Trust bearings: 270 Degrees
Hosepower: Up to 100HP
Exhaust (Turbo Manifold) Flange: 3 Bolt
Exhaust (Downpipe) Flange: 5 Bolt
Condition: New
Warranty: one year warranty for any manufacturing defect
Accessories: You will receive the parts exactly as shown in the picture above.
Note
Please check the Turbo Model, Turbo Part Number and OEM Part Number on your original Turbo to make sure this turbo is the correct one for your engine. If you need assistance finding the correct turbo for your car, please feel free to contact us.
Please double check the Cooling Type and Downpipe Bolts of your old turbo before buying
Professional installation is highly recommended (No Instructions are Included)
The flange of turbine outlet is 5-bolts,not 3-bolts. Please be sure to check your engine code is 4D56Q/4D56TD/4D56SJ before purchasing.2.this oil cooled turbo could be replaced by 49177-02513/49177-02512(water+oil cooled model), but need to close water hole.
