Mazda Ford B2500 J97A RHF5 VJ33 VJ26 WL84 WL85C Turbo Turbocharger VA430013
Introduction
Looking to boost your car's horsepower? Is your car's original turbocharger
not performing well or need replacing? Maxpeedingrods stocks all the best OEM-
quality turbochargers and turbo parts to give your car the power, performance,
and reliability you deserve. Maxpeedingrods aftermarket replacement turbos
provide the perfect solution by delivering a high-quality turbo at a budget-
friendly price.
Application
Compatible for Ford Ranger 2.5L D HS 1999-2006
Compatible for Ford Ranger Double Cab 2.5L D WLT 2004-
Compatible for Ford Ranger Double Cab 2.5L D J97A 1999-2003
Compatible for Mazda B2500 2.5L 115 J97A 1996-
Compatible for Ford Courier WL-T 2.5L Diesel
Compatible for Mazda Bravo WL-T 2.5L Diesel
Turbo Part Number & OEM Number
WL84,WL85,XN349G348AB,WL84.13.700,WL8413700，VJ26,VJ33,VA430013,VB430013,VC430013,VD430013,VE430013,VF430013,VA430089,
VB430089, VC430089,VD430089,VI430089,
VA430090, VB430090, VC430090,VD430090,VE430090,VF430090
HOW TO IDENTIFY YOUR TURBOCHARGER:
If you are not sure fitment for your old turbo , please let us know this
information :
1 . The OEM code information from your original turbo nameplate
2 . The Engine code & KW, HP, Year for your car
3 . The Photos of your complete turbo
4 . Please note that the registration number cannot identify your turbocharger
Specification
Turbo Model: RHF5
Engine: J97A, 115 J97A, WLT
Compressor Wheel Diameter: 36.3/52.4mm
Compressor Trim：48.0
Turbine Wheel Diameter: 40/42.7mm
Turbine Trim：87.8
Cooling Type: Water and Oil Cooled
Condition: New & Factory Balanced
Bearing Type: Journal Bearing
Thrust Bearing: 360 degrees
Horsepower: Up to 109HP
Warranty: one year warranty for any manufacturing defect

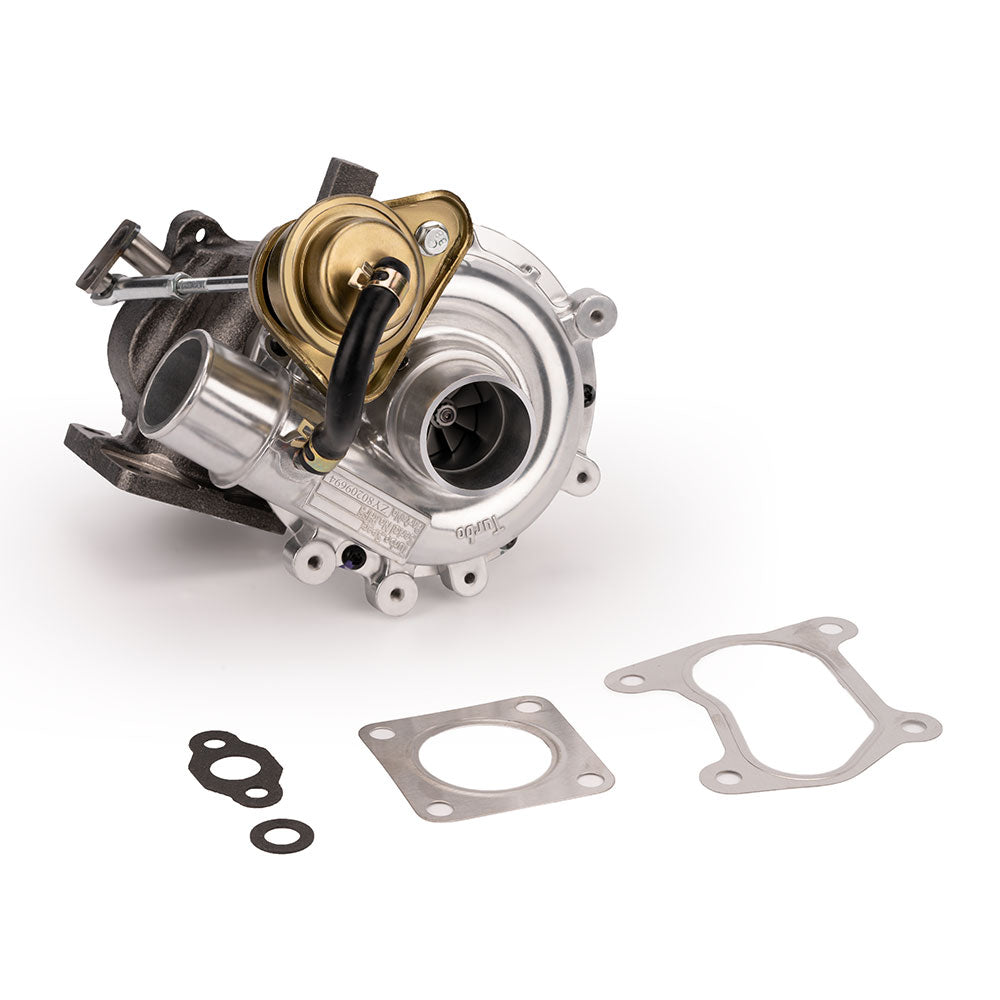

Accessories: You will get exactly as shown in the picture above
Feature
1\. Turbine housing：Ductile iron QT450-10 shell with high-temperature
resistance up to 700 degrees Celsius
2\. Steel Turbine Wheel：Made from the special K418 alloy to achieve high
oxidation resistance and stability under high temperatures up to 900 degrees
Celsius
3\. Compressor housing：ZL104 aluminum with lightweight
4\. Compressor wheel/blades：Cast aluminium with good gas tightness and
corrosion resistance
5\. All necessary gaskets included for ease of installation
6.100% balancing Test by TURBOTECHNICS VSR3
This Turbocharger you will receive has been balanced using the VSR machine
technology.
7\. G3-min-Flow VNT Turbo testing
The G3-min-Flow (Air) was designed and built in the UK by 3 former Garrett
Test Engineers whom have a combined total of 60 years in the Industry. the
machine can accurately measure the flow through the VGT turbo and verify that
it is set to the OEM factory setting. easily adjust the critical minimum-flow
stop to the correct setting before the turbocharger leaves workshop
8\. Advanced Actuator Tester/Programmer：
electronic actuator diagnostic with G3-rea-master can rewrite memory in
electronic actuators and also allows to modify operation range of the actuator
arm, that includes changing open and close positions of the working angle
Note
Please confirm your original turbo OEM/PART NUMBER before Purchasing.
Professional installation is highly recommended.
For any needs please contact us.
Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
