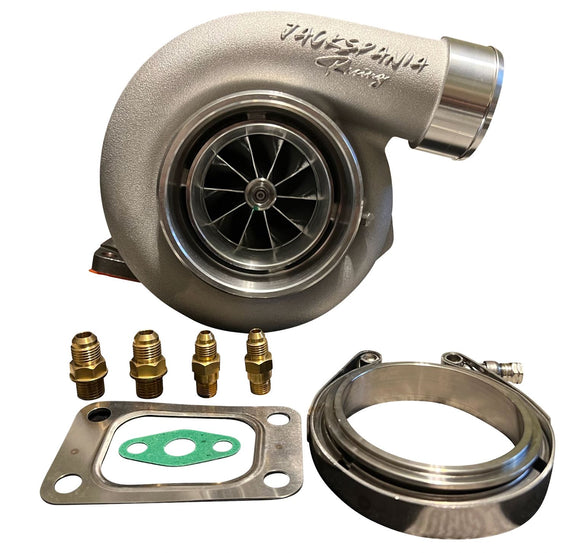

GTX3582R GT35 T3 .63AR Turbine Housing Dual Ceramic Ball Bearing Turbo 6262

  • $599.95


*** IMPORTANT NOTE: Order processing can take up to 3 business days. Shipping timeframes start after the order processing has been completed. ***

Gen II 2 GTX3582R GT35 T3 .63AR Turbine Housing Dual Ceramic Ball Bearing Turbo

Description:
GEN II GTX3582R GTX35 Dual Ceramic Ball Bearing Turbo T3 0.63A/R Turbine Housing With Vband Flange Clamp

Features:
Flank Billet Compressor Wheel
Dual Ceramic Ball Bearing System.
Refer Part #: 856801-5069S 856801-5068S 856801-5067S 856801-5072S 856801-5071S 856801-5070S
Fit Vehicle: Universal turbo for performance use, racing car etc.
Fit engine displacement 2.0-4.5L,Making 400-850 HP

Specification:
Compressor wheel: 65.7/82.6/85.3mm
Compressor Housing: 0.72 A/R Anti-Surge, 4" Inlet, 2.5" Outlet
Turbine wheel: 68mm/62.3mm
Turbine housing: T3 Inlet, V-Band 3" Outlet, A/R 0.63
Oil inlet:7/16-24UNF

What can you benefit from our Dual Ball Bearing turbocharger?

Reduced Turbo Lag:
Dual Ball Bearing turbochargers can spool up about 15% faster than traditional journal bearings, so it will significantly reduce the turbo lag when the throttle is suddenly opened. This produces an improved response that can be converted to a quicker 0-60 mph speed. In fact, when you drive with a dual ball bearing turbocharged engine, it will more like driving a big, normally aspirated engine.


Reduced Oil Flow:
The
Dual Ball Bearing design reduces the required amount of oil required to provide adequate lubrication. This lower oil volume reduces the chance for seal leakage. Also, the dual ball bearing is more tolerant of marginal lube conditions, and diminishes the possibility of turbocharger failure upon engine shut down.

Improved Rotordynamics and Durability:
The
Dual Ball Bearing cartridge gives better damping and control over shaft motion, allowing enhanced reliability for both everyday and extreme driving conditions. In addition, the opposed angular contact bearing cartridge eliminates the need for the thrust bearing commonly a weak link in the turbo bearing system.


What can you benefit from our Forged Billet Compressor Wheel?

Stronger Wheel:
By using forged billet aluminum to make the wheel, there is no chance of minute air bubbles being in the mental. So, you don't need to worry about porosity issues. That means billet compressor wheel is much stronger than cast compressor wheels.

Better Blades Design:
By using forged billet aluminum and machined on a 5-Axis mill, the billet compressor wheel can be designed much more aggressively, the nose and hub can be designed significantly smaller to allow for a greater blade diameter. And the blades can be made much more complicated to increase blade surface area, which can flow more air into the engine.

Lower Engine Intake Air Temperature:
By using forged billet aluminum, the wheel can be machined much thinner. This allows the wheel to have a greater efficiency range, because their is less blade thickness to contact the air and heat it up. It also means that with less blade thickness and lower hub area that there is a greater area in-between the blades to squeeze more air and build boost pressure. The more efficient a wheel is the lower the intake temps, and everyone knows the cooler the air going into the engine the more horsepower you can make!

Product Disclaimer:

Emissions Equipment Tampering Warning: In many states, tampering with your vehicle’s emissions equipment is unlawful. Our products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway.

Using our products for street/road use on public roads or highways is prohibited by law unless a specific regulatory exemption exists (more information can be found on the SEMA Action Network website www.semasan.com/emissions for state-by-state details in the USA).

CARB-Restricted Areas: CARB-Restricted products, will not be shipped to state of California under any circumstatences.

Official Air Resource Board Link: ARB State Adoption Link

Customer Responsibility: It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations. Please check with your local vehicle authority before purchasing, using, or installing any of our products.

By proceeding with the purchase and use of our products, customers affirm their commitment to adhere to the terms outlined in this comprehensive product disclaimer. We reserve the right to update this disclaimer as necessary.
