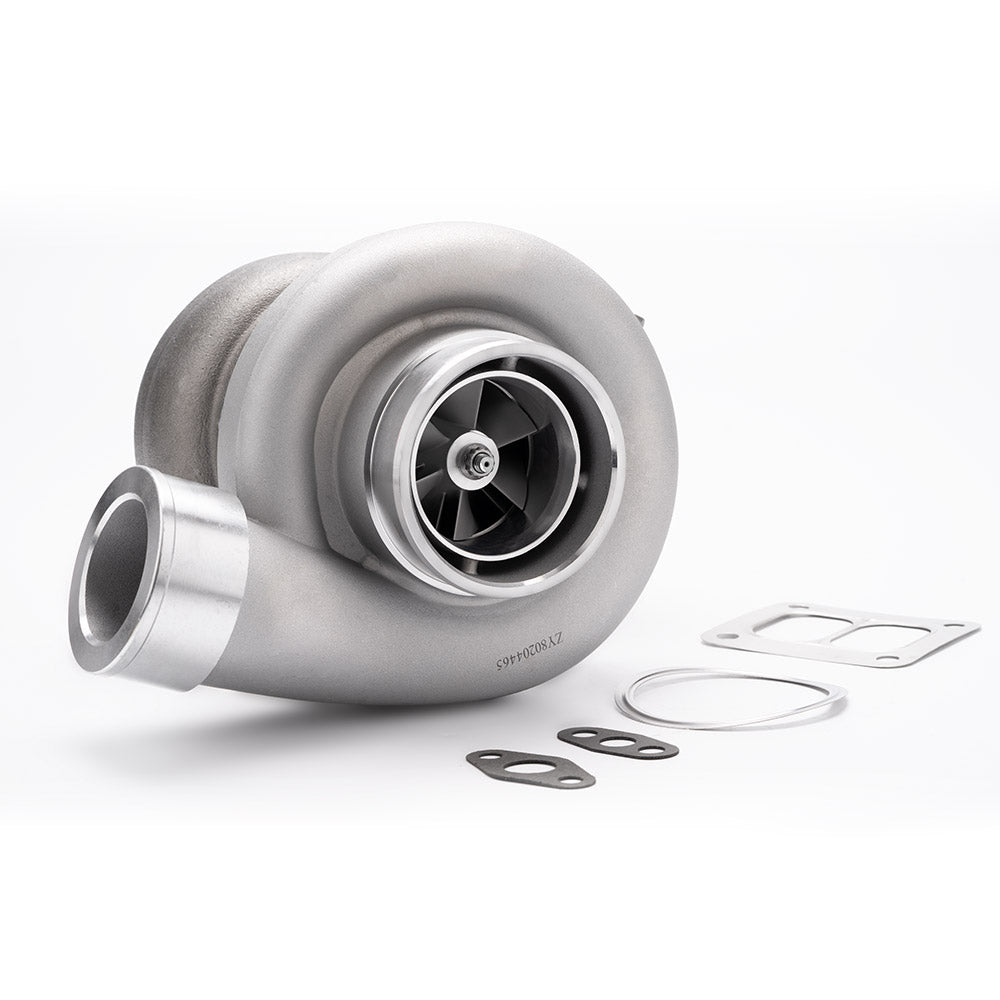

GT45 turbo V-band Turbocharger T4 TWIN-SCROLLWet Float A/R .66 A/R 1.05 600+BHP
Description
Are you trying to put together a cost effective turbocharger system for your
vehicle? You should know a turbocharged car has about 20-40% more total power
than a non-turbo car of the same year, make and model. Well, Maxpeedingrods
universal turbocharger got just what you're looking for. Don't hesitate to get
a turbo to boost your car's power.
Application
This turbo is a universal application street turbo, some modification may be
required based on individual vehicle.
Perfect for all 4.0L-6.0L engine
Horse Power: Capable of boosting horse power up to 600BHP
Specification
Exhaust Inlet (Turbo Manifold) Flange: T4 Flange
Exhaust Outlet (Downspout) Flange: 3.25 " V-Band Flange
Compressor Trim: 49.6
Compressor Inducer Diameter: 69 mm
Compressor Exducer Diameter: 98 mm
Compressor Air Inlet Size: 107mm
Compressor Air outlet Size: 86.3mm
Compressor A/R: 0.66
Turbine Trim: 77.6
Turbine Inducer Diameter: 88 mm
Turbine Exducer Diameter: 77.5 mm
Turbine A/R: 1.05
Oil Inlet: M9 & 2M81.25
Oil Outlet: M19 & 2M81.25
Bearing Type: Wet Float
Cooling Type: Oil Cooled
Wastegate: External
Warranty: one year for any manufacture defects
Features
1\. Turbine housing：Ductile iron QT450-10 shell with high-temperature
resistance up to 700 degrees Celsius.
2\. Steel Turbine Wheel：Made from the special K418 alloy to achieve high
oxidation resistance and stability under high temperatures up to 900 degrees
Celsius.
3\. Compressor housing：ZL104 aluminum.
4\. Compressor wheel/blades:
\- Cast Aluminium with good gas tightness and corrosion resistance.
Notice
Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
Make sure the oil drain line is lower than the turbo itself.
Gasoline car must install a water cooling device to avoid overheating.
Ensure exhaust outlet are well sealed by welding.
Please check the specifications carefully before buying. If you are not sure about these information, please feel free to contact us.
This is universal application turbo, so modification might be required for some vehicles.
Professional installation is highly recommended(No Instruction Included).
