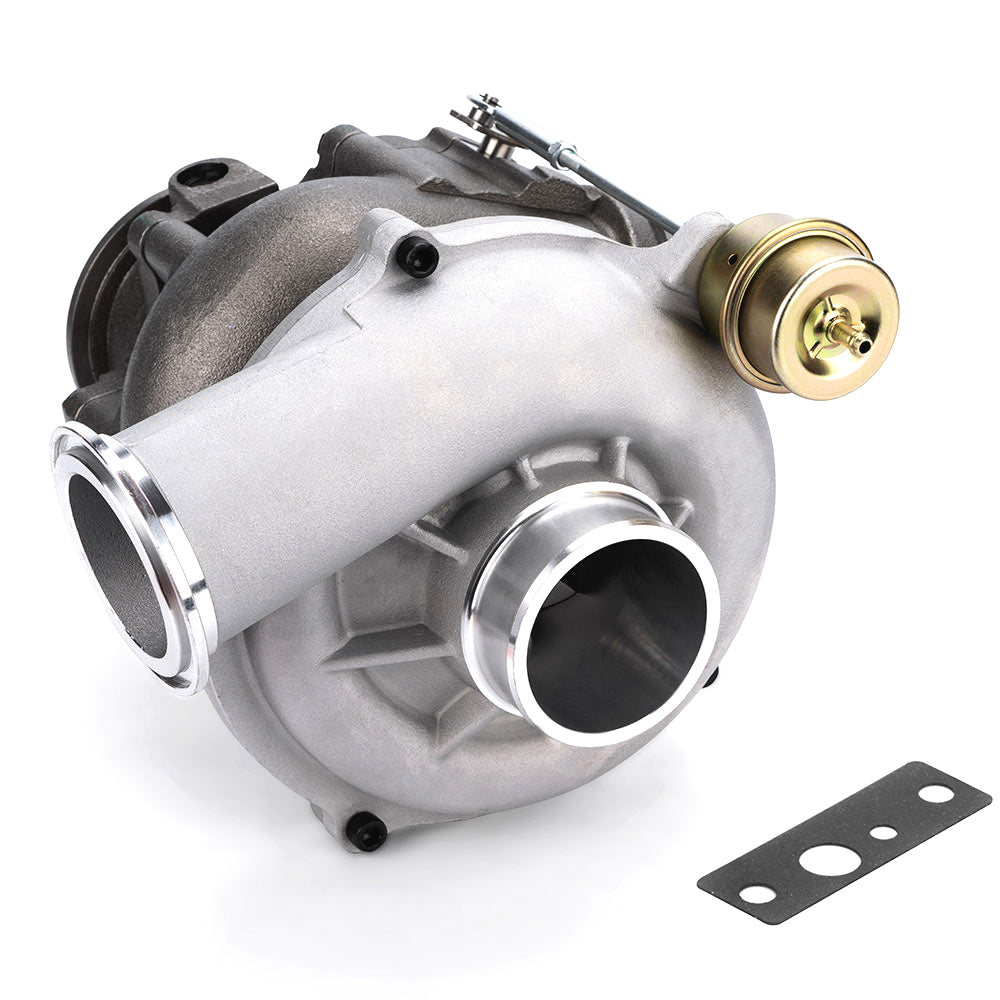

Ford Excursion 7.3L Powerstroke Diesel Engine 2000-2003 Powerstroke Diesel Turbocharger 99.5-03
Introduction
Looking to boost your car's horsepower? Is your car's original turbocharger
not performing well or need replacing? Maxpeedingrods stocks all the best OEM-
quality turbochargers and turbo parts to give your car the power, performance,
and reliability you deserve. Maxpeedingrods aftermarket replacement turbos
provide the perfect solution by delivering a high-quality turbo at a budget-
friendly price.
Application
Compatible for Ford Excursion 7.3L Powerstroke Diesel Engine 2000-2003
Compatible for Ford F Series Trucks 7.3L Powerstroke Diesel Engine 1999.5-2003
Compatible for Ford Pick-up Truck 7.3L Powerstroke Diesel Engine 1999.5-2003
Interchange Part Numbe
GTP38,1831383C92,702012-9006,
739619-0009,7064475003,706447-5003,706447-9003,
7396195004S,739619-5004S,F81Z6K682BARM,F81Z6K682CARM,
F81Z6K682CARM,1831383C92,7020129006,7064479003,1831383C94，
1831450C94,40-30078 AN,5010014R92,5776 990
0000，1831450C91,1831452C91，1831383C93
Not fit for 1825878C91，702650-0001，471128-9010
HOW TO IDENTIFY YOUR TURBOCHARGER
If you are not sure fitment for your old turbo, please let us know this
information :
1 . The OEM code information from your original turbo nameplate
2 . The Engine code & KW , HP , Year for your car
3 . The Photos of your complete turbo
4 . Please note that the registration number cannot identify your turbocharger
Specification
Cooling Type：Oil cooling
Compressor Wheel Diameter: 80/59.3 mm
Compressor Trim: 54.9
Turbine Wheel Diameter: 76.9/ 67.7mm
Turbine Trim: 77.5
Horsepower Rating: up to 275 HP
Bearing Type: Floating Bearing
Condition: New
Warranty: one year warranty for any manufacturing defect
Accessories: You will receive the parts exactly as shown in the picture above.
Feature
1\. Turbine housing ：Ductile iron QT450-10 shell with high-temperature
resistance up to 700 degrees Celsius
2\. Steel Turbine Wheel：Made from the special K418 alloy to achieve high
oxidation resistance and stability under high temperatures up to 900 degrees
Celsius
3\. Compressor wheel/blades：Cast aluminium with good gas tightness and
corrosion resistance
4\. Brass 270 Thrust Bearing：Brass dissipates heat faster and provides a
longer life span vs steel
5\. Oil Seal：Tighter tolerances for superior sealing minimizing oil leakage
from the bearing housing
6\. Excellent Design:
Excellent Design And Processing and durable floating bearing structure + high-
precision blade dynamic balance
7\. High Efficiency:
High efficiency and low inertia intake and exhaust blades can greatly reduce
turbo lag
8\. Durable:
Water-cooled/oil-cooled structure extends turbine service life
9\. VSR's balancing technology
This Turbocharger you will receive has been balanced using the VSR machine
technology
Note
Please check the Turbo Model, Turbo Part Number and OEM Part Number on your original Turbo to make sure this turbo is the correct one for your engine. If you need assistance finding the correct turbo for your car, please feel free to contact us.
Professional installation is highly recommended (No Instructions are Included)
