Coilover Suspension Kits Subaru Legacy 05-09 BL BP Adjustable Height Shocks lowering kit
Application
Compatible for Subaru Legacy 2005-2009 (USA) BL9 BP9
compatible for Subaru Legacy B4 2003.05-2009.04JPN BLE BL5
compatible for Subaru Legacy TOURING WAGON 2003.05-2009.04JPN BP5 BPE
Specification
Top mounts: Front pillow ball top mount with camber plate
Damping: Not available
Adjustable camber plate: Front only
Spring rate Front: 7 kg/mm (392 lbs/in)
Spring rate Rear: 12 kg/mm (672 lbs/in)
Spring length Front: 200mm
Spring length Rear: 190mm
Adjustable height: lowering 1-3 inch
Coilover overall length Front: 460mm-550mm
Coilover overall length Rear: 400mm-450mm
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: Gold
Package included

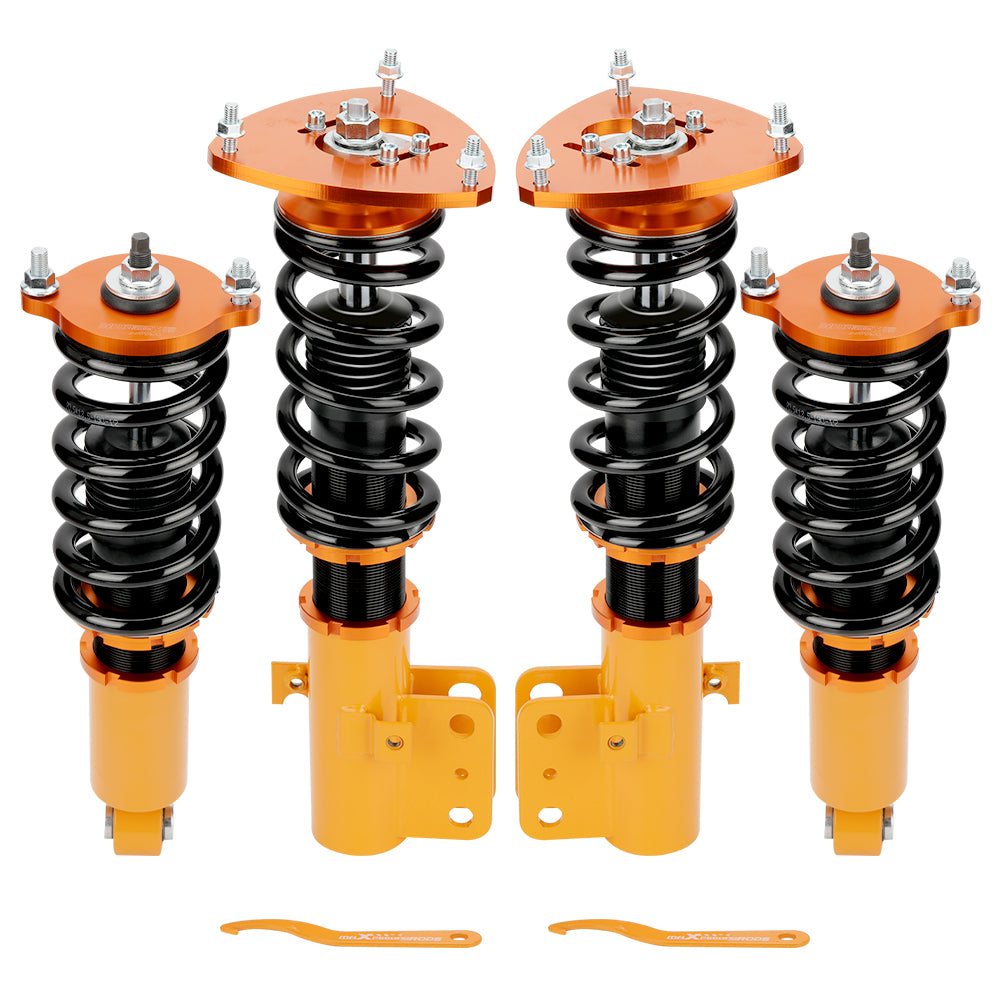

Complete coilover assembly kit for front and rear
A pair wrench for height adjustment
Dimension
Size: 63*51*21 cm
Weight: 25.8 kg
Feature
Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
Camber plate top mounts help to eliminate the need for a separate camber kit.
Pillow ball top mount - It improves the steering feel and response.
Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.
Twin-Tube structure allows sufficient stroke within the shock absorber.
Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
Separate height adjustment does not affect damper stroke.
Height can be adjusted with coilovers installed on the vehicle.
High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
Height Adjustment tools included.
Full rebuildable.
Warranty: one year warranty for any manufacturing defect
