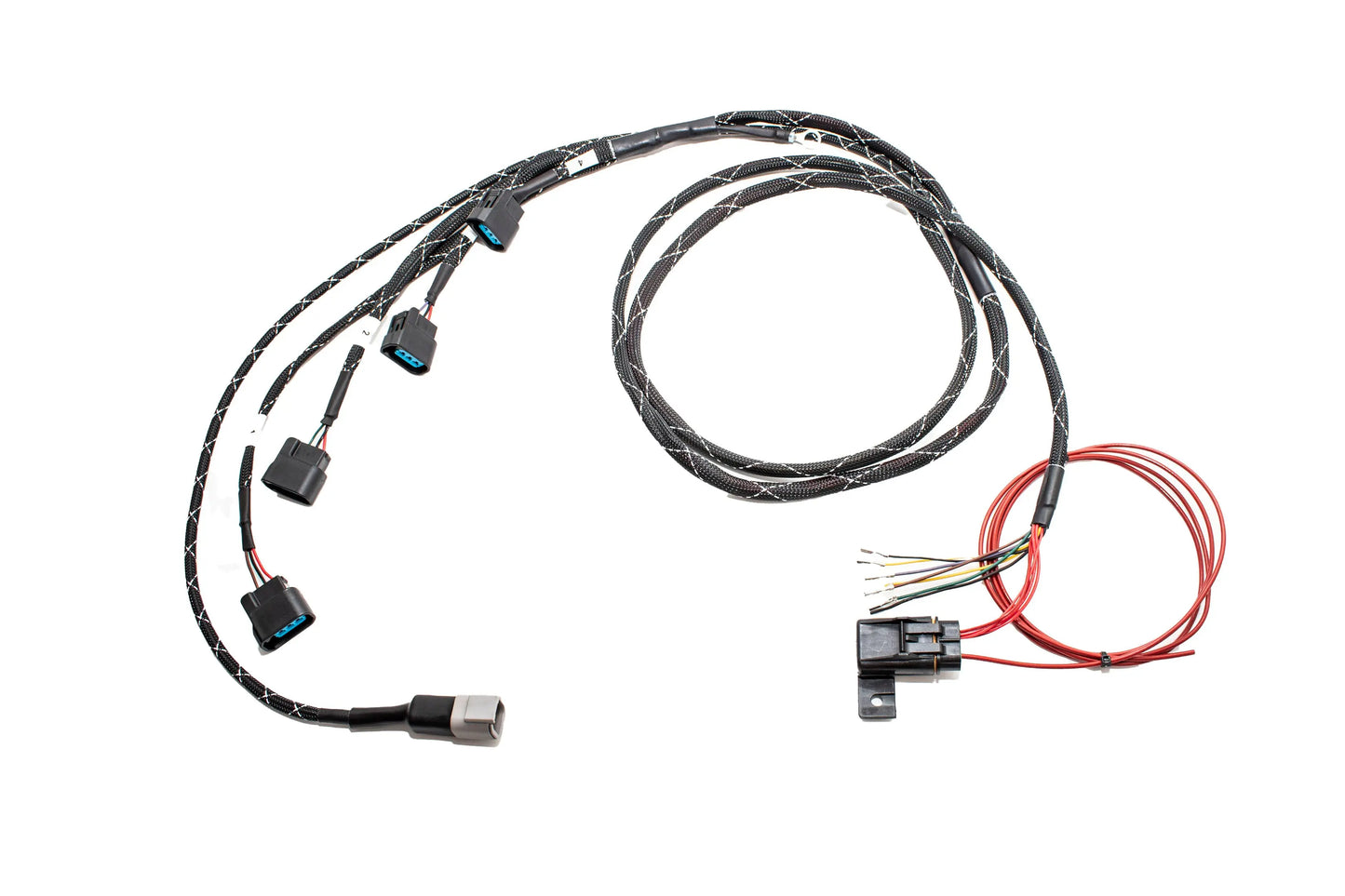

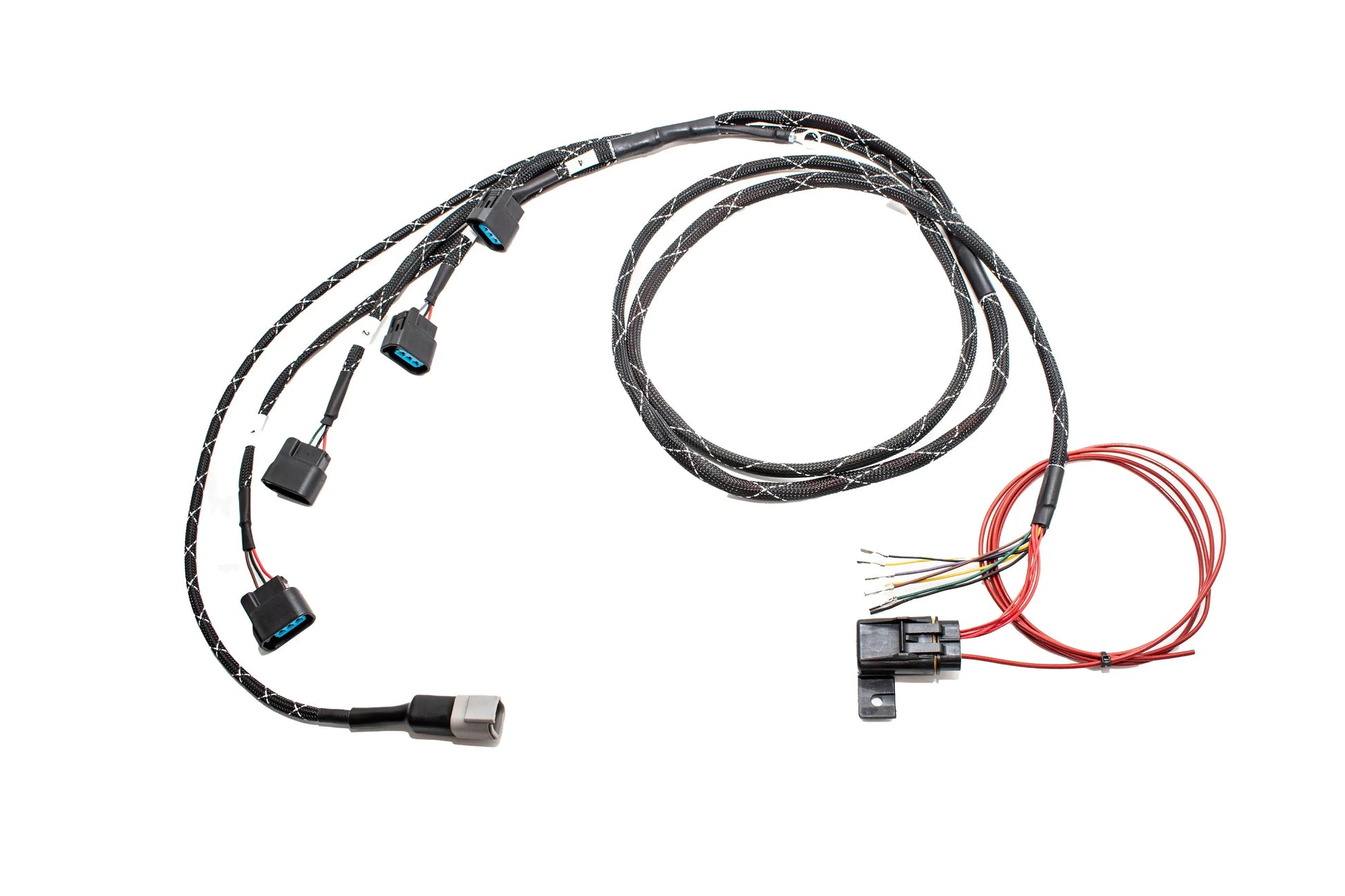

B Series K20 K24 / S2000 Coils Retrofit Harness w/ T1 Trigger Wiring

Introducing our versatile coil harness designed specifically for K20/S2000 coils, eliminating the need for a CDI ignition box. The harness also incorporates AEM EPM or T1 Cam Trigger wiring for convenient cam and crank pickup.

This plug-and-play harness seamlessly integrates with AEM EMS, as well as other standalones like Motec, and more. It directly connects to K-series and S2000 coils, making it compatible with AEM EPM and AEM EMS (Series 1 or 2).

For users with alternative standalone computers such as Motec, AEM Infinity, or AEM EMS-4, you would just have to remove the pins we have crimped and install the related ECU pins for your setup. By default the fly leads come with OBD1 crimped pins.

Please note that installation procedures may vary depending on your specific setup. Refer to your Cam/Crank Trigger wiring diagram and stand-alone computer schematic for proper installation instructions.

Connector Overview:

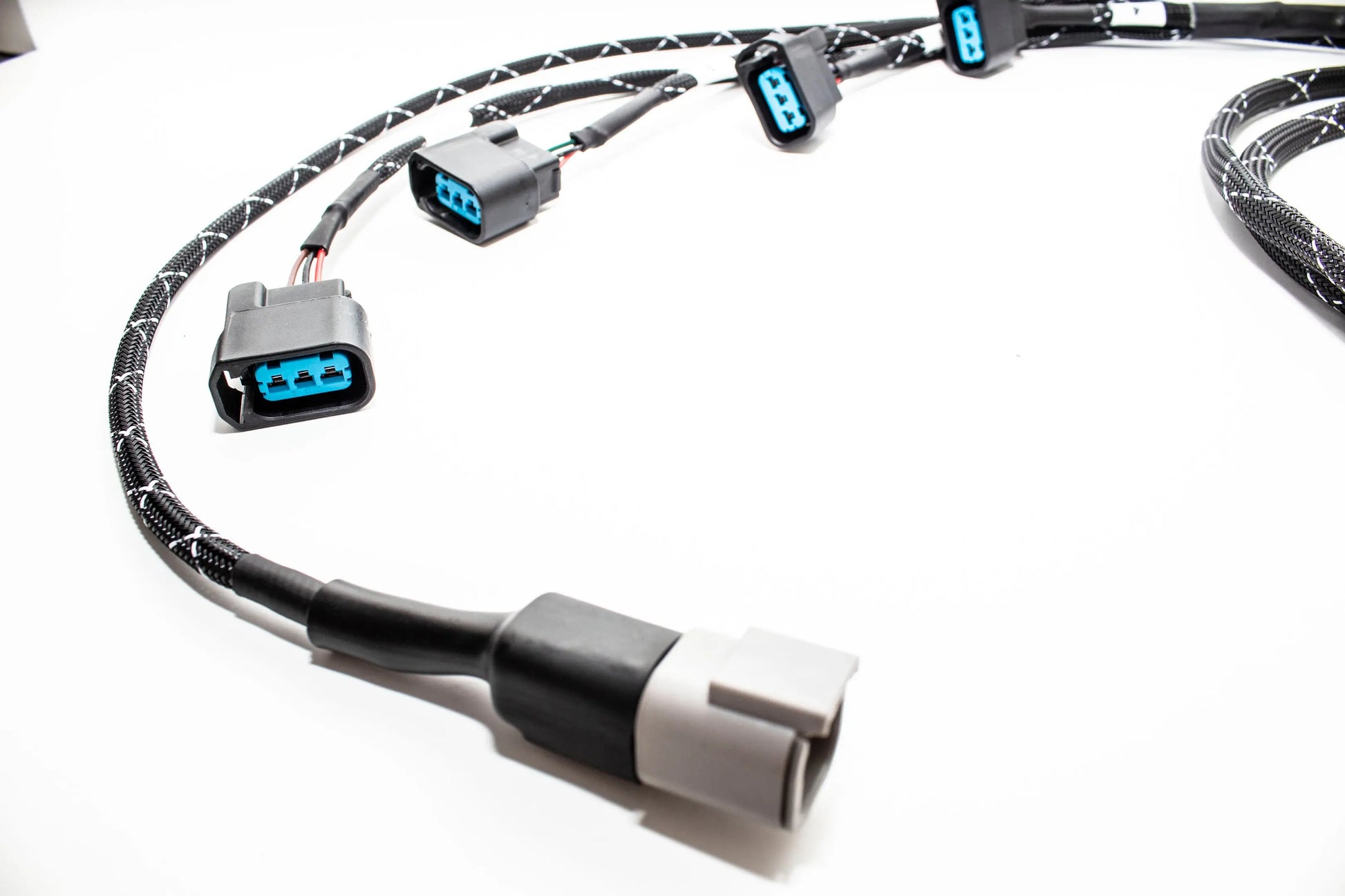

4x Ignition Coil Connectors

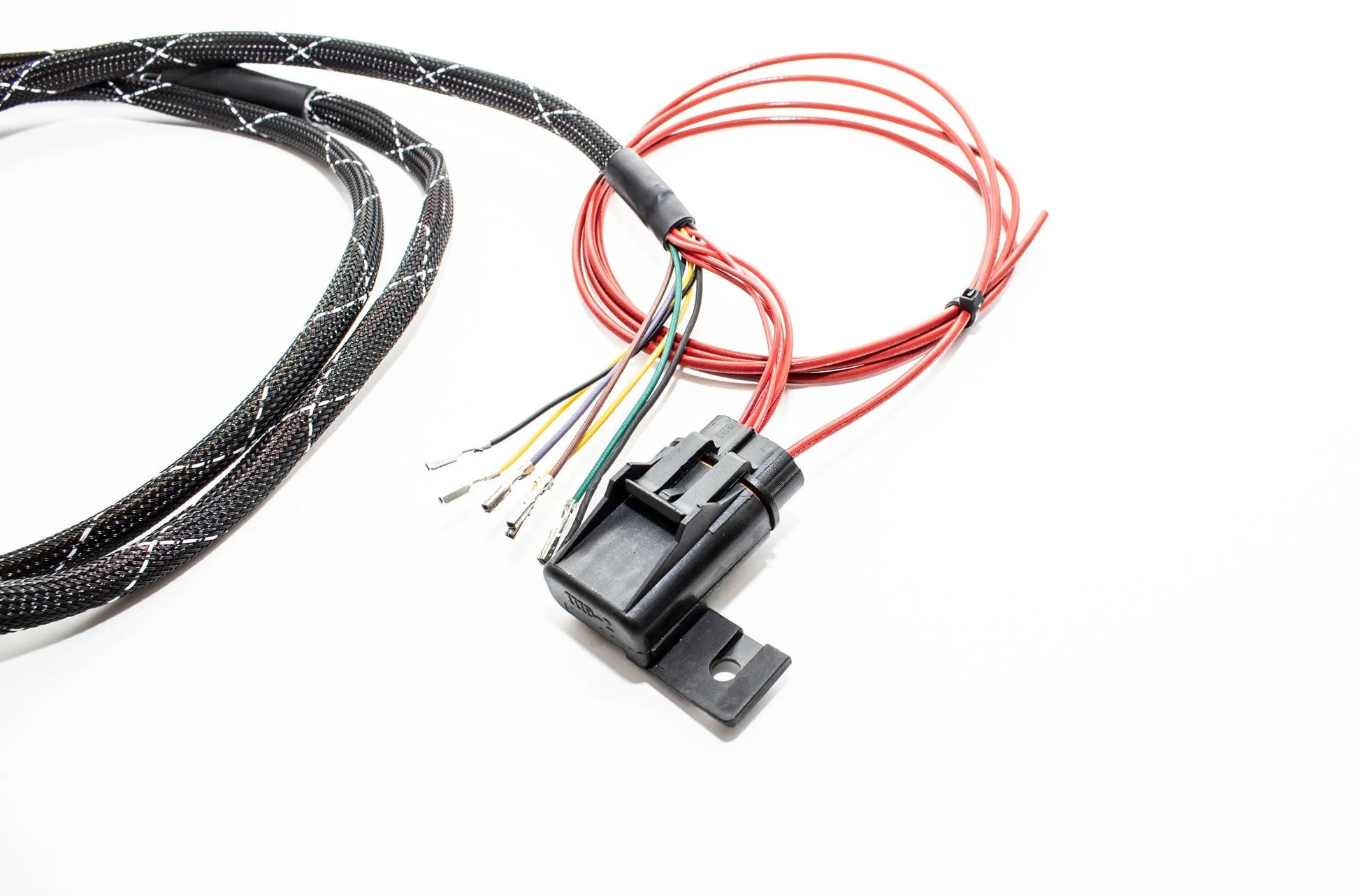

1x Fuse
1x T1 Trigger Connector
