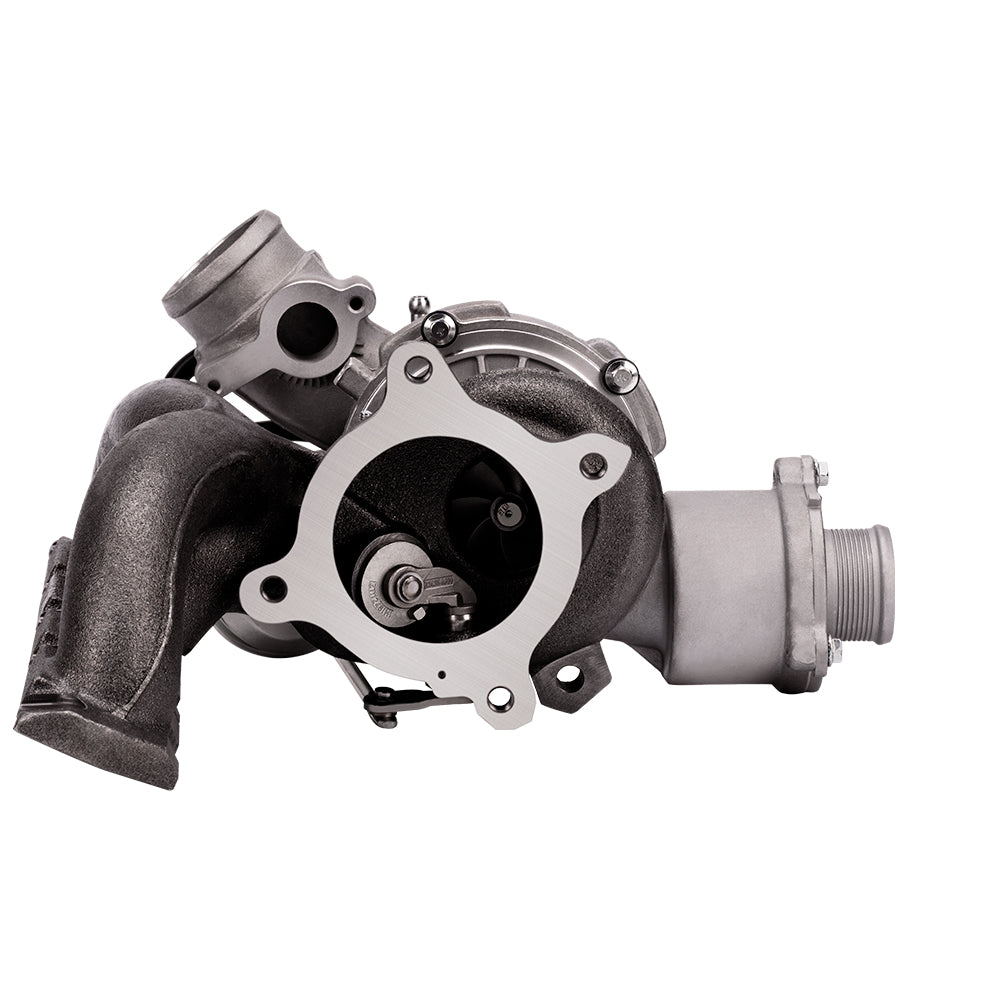

2009-15 Audi A4, A4 Avant, Quattro Avant with CDNB,CDNC, CAEA, CAEB, CFKA Engine Turbocharger with Billet Compressor Wheel
Application
Suitable for daily street use and junior track use.
2009-15 compatible for Audi A4, A4 Avant, Quattro Avant with CDNB,CDNC, CAEA,
CAEB, CFKA Engine
2009-15 compatible for Audi A5 Coupe, A5 Sportback with CDNB,CDNC, CAEA, CAEB,
CFKA Engine
2010-15 compatible for Audi A5 Cabriolet with CDNB,CDNC, CAEA, CAEB, CFKA
Engine
2009-15 compatible for Audi Q5 2.0L, S4 Avant, S5 Coupe, Sportback with
CDNB,CDNC, CAEA, CAEB, CFKA Engine
2008- Compatible for Audi A5 Coupe 3.2L with CDNB,CDNC, CAEA, CAEB, CFKA
Engine
2008-15 compatible for Audi A4, S4 with CDNB, CDNC, CAEA, CAEB, CFKA Engine
2008-15 compatible for Audi A5, S5 with CDNB, CDNC, CAEA, CAEB, CFKA Engine
2008-15 compatible for Audi A6 with CDNB, CDNC, CAEA, CAEB, CFKA Engine
2008-15 compatible for Volkswagen Passat with CDNB, CDNC, CAEA, CAEB, CFKA
Engine
2008-15 compatible for Seat Exeo with CDNB, CDNC, CAEA, CAEB, CFKA Engine
this turbo is not compatible for Audi A4 Quattro Base Sedan 4-Door 2.0L 1984CC 121Cu. In. l4 GAS DOHC 2012
OE/Part number
06H145702L,06H 145 702 L, 06H 145 702L,
06H145702S, 06H 145 702 S, 06H 145 702S,
06H145702G,06H 145 702 G,06H 145 702G,
06H145702Q,06H 145 702 Q, 06H 145 702Q ,
06H145702R,06H 145 702 R, 06H 145 702R ,
06H145702T, 06H 145 701 T, 06H 145 701T ,
06H145702LV, 06H145702LX,
06H145702SV,06H145702SX,
06H145702GV,06H145702GX,
06H145702QV,06H145702QX,
06H145702RV,06H145702RX,
06H145702TV,06H145702TX,
53039700291, 5303-970-0291,
53039880291, 5303-988-0291,
Specification
Turbo Model: RHF5
Engine Code:CDNB, CDNC, CAEA, CAEB, CFKA, TFSI
Cooling Type:Water Cooled
Bearing Type: Floating Bearing
Trust Bearing:360 degree
Hosepower: Up to 160HP
Turbo Type:Individual
Universal Fitment: No
Finish: Matte
Condition: New
Accessories: You will get exactly as shown in the picture above
Package Size:49 x 38 x 26 cm
Package Weight: 12850g
Package included
1xTurbocharger
1xFlange gaskets
2xOil/Water port gaskets
1xManifold gasket
1xManual
1xBrochure
1xSticker
Feature
Product Material
1\. Turbine housing ：Silicon-Molybdenum - temperature resistant up to 850℃
2\. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistance
up to 1000℃
3\. Compressor housing：ZL104 aluminum with lightweight
4\. Billet compressor wheel：forged full-machined billet aluminum compressor
wheels with a larger horsepower range and better boost response
Product Performance
1\. OEM fitment turbo with upgraded material and performance
2\. Excellent high temperature resistance，high efficiency and durability
3\. Rich experience in turbo production and own factory
4\. High-Speed oil seal ring and Precision clearance
Technology Advantage:
1\. 100% balancing Test by TURBOTECHNICS VSR3
2\. G3-min-Flow VNT Turbo testing
3\. Advanced Actuator Tester/Programmer
Note
Please confirm your original turbo PART NUMBER before Purchasing
Professional installation is highly recommended
Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
Product Disclaimer:
Emissions Equipment Tampering Warning: In many states, tampering with your vehicle’s emissions equipment is unlawful. Our products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway.
Using our products for street/road use on public roads or highways is prohibited by law unless a specific regulatory exemption exists (more information can be found on the SEMA Action Network website www.semasan.com/emissions for state-by-state details in the USA).
CARB-Restricted Areas: CARB-Restricted products, will not be shipped to state of California under any circumstatences.
Official Air Resource Board Link: ARB State Adoption Link
Customer Responsibility: It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations. Please check with your local vehicle authority before purchasing, using, or installing any of our products.
By proceeding with the purchase and use of our products, customers affirm their commitment to adhere to the terms outlined in this comprehensive product disclaimer. We reserve the right to update this disclaimer as necessary.
