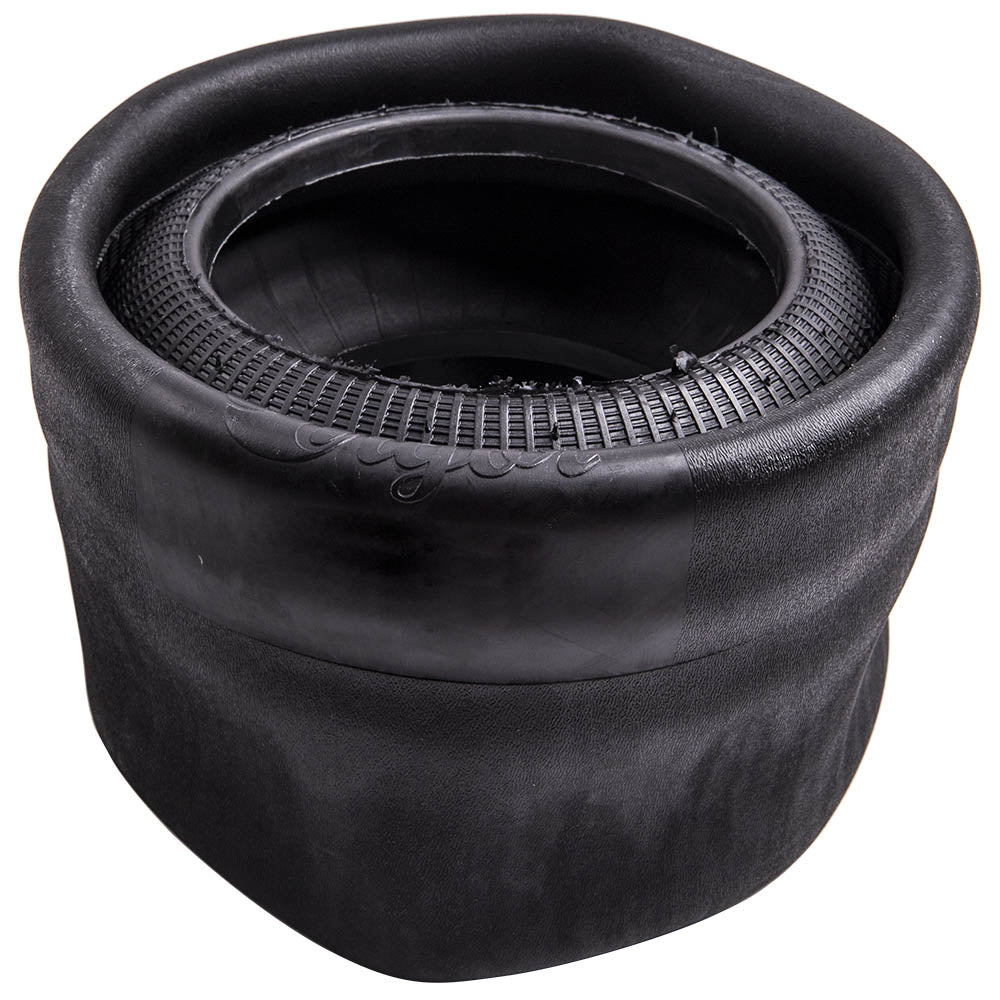

Universal Air Suspension Spring Bag Buessing Firestone W01-095-0021
OE Part No.
For Firestone Ref.: W01 095 0021/W01-095-0021
For Firestone Style NO.: 1R1C 390 310
For Airtech: 110022
For Airtech Prod. NO.: 3661
For Automint: 9902
For Blacktech: RL 9772
For Cf Gomma: 91016, 1S31028
For Contitech: 661N/2688004000
For Connect: M 1661
For CONNECT Order NO.: 240391.150.1.01
Compatible for Continental: 661 N/N F44
For Dunlop France: PNP304980101, D12S02, IC3309
For Fa1: D297 , 2970390, V1E25, 1661
For Phoenix : 1E25
For Goodyear: 8018
For Buessing : 831120144, 546905134
Compatible for Evobus : 536.905.265, 546 905 134
For Hanomag : 536905265
For Irisbus : 5001829866
Compatible for Iveco : 4746733, 41822247
For Kassbohrer: 4771440000, 4771427000, 4731042000, 4731031000, 4731012000
For Magirus-Deutz: 41822247
For Man: 90831120144
Compatible for Neoplan : 100112250, AA1001001
Compatible for Renault Trucks : 5001829866
For Schmitz Cargobull : 750208
Compatible for Volvo: 1137888, 3159253, 1137882
For AUWÄRTER/Compatible for Neoplan: 1001.101.00, 1001 122 50, 1021.002.00,
AA10-01-001
For BÜSSING: 536 905 265, 546 905 134
For DROGMÖLLER/Droeg: 440320200002-00
Compatible for EvoBus (Kässbohrer - SETRA): 4.731.012.000, 4.731.031.000,
4.771.427.000, 4.771.440.000
For EVO: 4.731.042.000
For Schmitz-Anhänger: 750 208
Compatible for VAN HOOL: 624319-670, 624319-690, 624319-700
For WABCO: 896 130 117 4
For VIBRACOUSTIC: V 1 E 25
For TAURUS: BL 114
For PIRELLI: 1S310-28
For PIRELLI ARTICLE NO.: 91016
For GRANNING 15621
Specification
Design height: 275mm
Deflection(Height min): 160mm
Deflection(Height max): 415mm
Working stroke: 255mm
Measurnment d max: 315mm
Space required: 335mm
Loading cap. at 1.0bar: 5kN
Loading cap. at 7.0bar: 32.0kN
Size: 12.28.28.2 Inch
Weight: 5 lbs
Condition: 100% New
Quantity: 1 Piece (for Left, Right, Front, Rear)
Features
-one year Warranty
-Mates with OE Air Lines
-Designed for Comfort Suspension
Notice
-These air suspension bags are aftermarket ones. They will replace the original rear air springs.
-Instruction is not included. Professional installation is recommended
-Contact us please for whatever we can help
