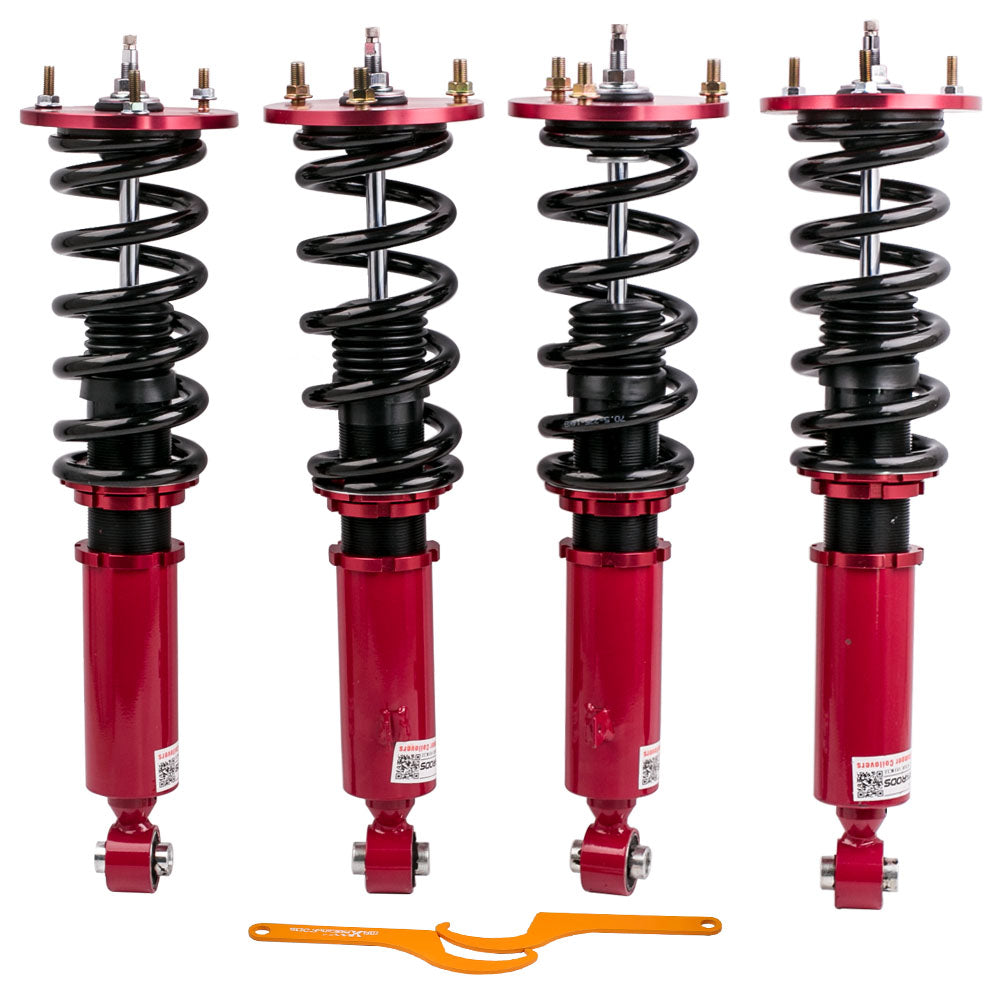

MK3 1987-1992 Supra 24 Way Adj. Damper and Height Shocks Absorber Racing Coilovers lowering kit
Introduction
MaXpeedingRods-B3 series(also called MaXpeedingRods-SLC) based on MaXpeedingRods-B2 series(also called MaXpeedingRods-SNA) coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
Application
Compatible for TOYOTA Compatible for SUPRA 1986.01-1990.08 JPN MA70 GT TURBO, GT TWIN TURBO S
Compatible for TOYOTA Compatible for SUPRA 1986.01-1993.04 JPN GA70 G, GT, GT TWIN TURBO
Compatible for TOYOTA Compatible for SUPRA 1987-1992 USA MA70L
Compatible for TOYOTA Compatible for SUPRA 1990.08-1993.04 JPN JZA70 GT, TWIN TURBO, TWIN TURBO R
Compatible for TOYOTA SOARER 1986.01-1991.05 JPN GZ20 GT TWIN TURBO, TWIN TURBO L, 2.0VX
Compatible for TOYOTA SOARER 1986.01-1991.05 JPN MZ20 GT, GT LIMITED
Specification
Top mounts: rubber front and rear
Damping: 24 ways damping adjustable
Spring rate: front 14kg/mm (784lbs/in)
rear: 12 kg/mm (672 lbs/in)
adjustable height: Yes lowering 1" to 3"
shock type: Twin tube
color: red body with black spring
Package included
product included: complete coilovers 2 front and 2 rear
a pair wrench for height adjustment
Dimension
package weight: 25820g
package dimension: 71*51*21
Feature
1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
3， Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.
4，Twin-Tube structure allows sufficient stroke within the shock absorber.
5，Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
6，Separate height adjustment does not affect damper stroke.
7，Height can be adjusted with coilovers installed on the vehicle.
8，High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
9，Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
Warranty: one year warranty for any manufacturing defect
Product Disclaimer:
Emissions Equipment Tampering Warning: In many states, tampering with your vehicle’s emissions equipment is unlawful. Our products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway.
Using our products for street/road use on public roads or highways is prohibited by law unless a specific regulatory exemption exists (more information can be found on the SEMA Action Network website www.semasan.com/emissions for state-by-state details in the USA).
CARB-Restricted Areas: CARB-Restricted products, will not be shipped to state of California under any circumstatences.
Official Air Resource Board Link: ARB State Adoption Link
Customer Responsibility: It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations. Please check with your local vehicle authority before purchasing, using, or installing any of our products.
By proceeding with the purchase and use of our products, customers affirm their commitment to adhere to the terms outlined in this comprehensive product disclaimer. We reserve the right to update this disclaimer as necessary.
