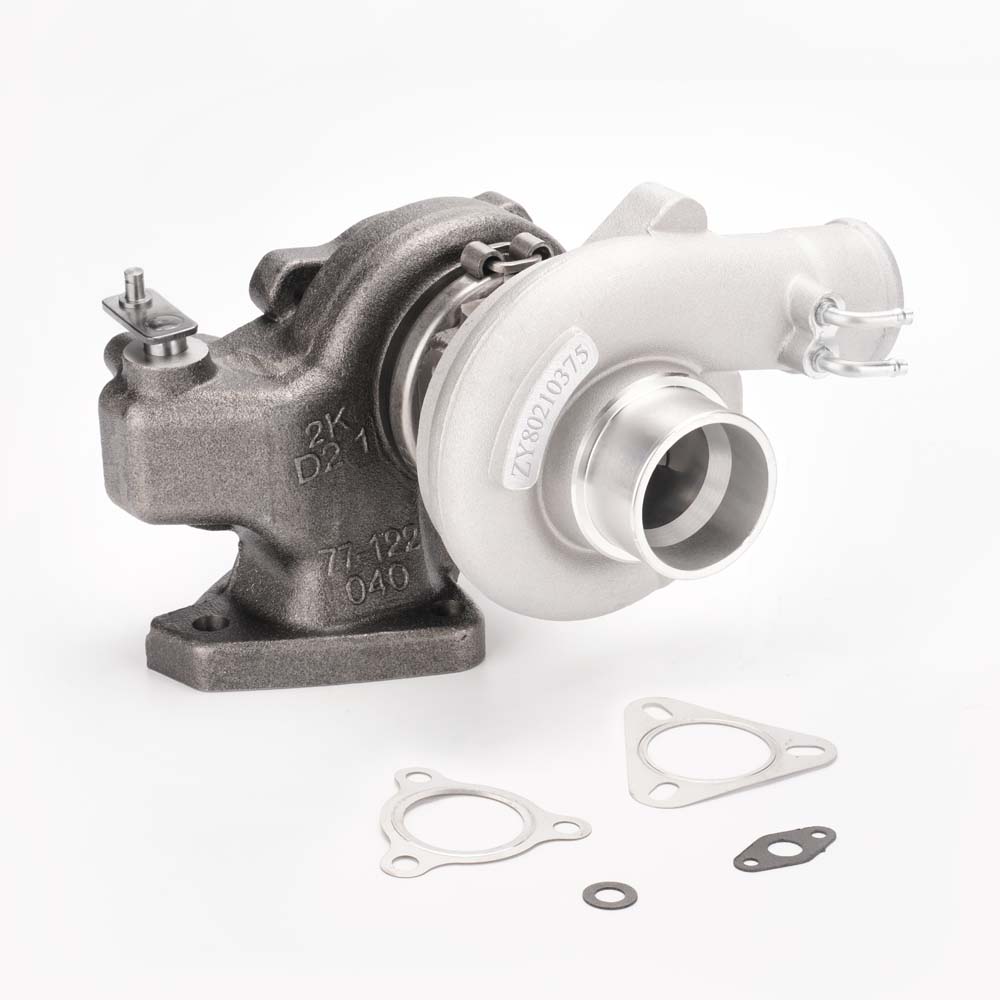

Mitsubishi L200 Pajero 4D56PB 4D56 2.5L TD04-10T Turbo Charger MR355222
Introduction
Looking to boost your car's horsepower? Is your car's original turbocharger
not performing well or need replacing? Maxpeedingrods stocks all the best OEM-
quality turbochargers and turbo parts to give your car the power, performance,
and reliability you deserve. Maxpeedingrods aftermarket replacement turbos
provide the perfect solution by delivering a high-quality turbo at a budget-
friendly price.
Application
Compatible for Mitsubishi L200/Pajero 2.5L 4D56PB/4D56 1993-1996
Compatible for Mitsubishi Shogun 4D56PB/4D56 1993-1996
Compatible for Mitsubishi L300 4D56PB/4D56 1993-1996
Notice: The flange of the turbine outlet is 3-bolts, not 5-bolts.
Please be sure to check your engine code is 4D56PB,4D56 before purchasing
Turbo Model
L200; Pajero
Engine Code
4D56PB/4D56
Turbo Part Number & OEM Number
49177-01502, 4917701502,
49177-01503, 4917701503,
49177-01504, 4917701504,
49177-01505, 4917701505,
49177-01512,4917701512,
49177-01513, 4917701513,
49177-01514, 4917701514,
49177-01515, 4917701515,
MR355220, MR355221,MR355222 ,MR355223,
MD195396,MD194841,MD194842, MD1948843,
This turbo goes with oil and water-cooling bearing housing that would fit the
original oil-cooled turbo with OE/PN number below, but need to close the water
hole:
49177-01500, 49177-01500,
49177-01501, 49177-01501,
49177-01510, 4917701510,
49177-01511, 4917701511,
MD168053, MD168054, MD094740,MD106720
Feature
Product Material
1\. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
2\. Steel turbine wheel: K418 alloy - high oxidation stability and resistance
up to 900℃
3\. Compressor housing: ZL104 aluminum with lightweight
4\. Compressor wheel/blades: Cast aluminium blades – superior airtightness &
corrosion resistance
Product Performance
1\. OEM-quality and size with little modification
2\. Rich experience in turbo production and own factory
3\. High-Speed oil seal ring and Precision clearance
Technology Advantage:
1\. 100% balancing Test by TURBO TECHNICS VSR3
2\. G3-min-Flow VNT Turbo testing
3\. Advanced Actuator Tester/Programmer
Specification
Exhaust Inlet Flange:3 Bolts
Exhaust Outlet Flange:3 Bolts
Turbo Model: TD04
Engine Code:4D56PB,4D56
Cooling Type: Water + Oil Cooling
Bearing Type: Journal Bearing
Thrust bearings: 270 Degrees
Horsepower: 73kw/98hp
Turbo Type: Individual
Universal Fitment: No
Finish: Matte
Condition: New
Accessories: You will receive the parts exactly as shown in the picture above
Package Size:26 x 24 x 23cm
Package Weight:5380g
Note
Please confirm your original turbo PART NUMBER before Purchasing
Professional installation is highly recommended
Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
