Mazda Protege 323 BJ 1999-2003 Adj Damper Coilovers Suspension Lowering Kit
Introduction
MaXpeedingRods-B3 series(also called MaXpeedingRods-SLC) based on MaXpeedingRods-B2 series(also called MaXpeedingRods-SNA) coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
Application
Compatible for Mazda 323 1999-2003
Compatible for Mazda Protegé 1999-2003
Compatible for Mazda Protegé5 1999-2003
Compatible for Mazdaspeed Protegé 1999-2003
Compatible for Mazda Isamu Genki (Taiwan) 1999-2003
Compatible for Mazda Allegro 1999-2003
Compatible for Ford Activa 1999-2003
Compatible for Ford Laser (KN/KQ) 1999-2003
Compatible for Ford Tierra 1999-2003
for Haima Family (China) 1999-2003
for Haima Happin (China) 1999-2003
Specification
Top mounts: front pillow ball top mount with camber plate
rear pillow ball top mount
Damping: 24 levels rebound damping adjustable
Spring rate Rear: 6 kg/mm (336 lbs/in)
Spring length Front: 200mm
Spring length Rear: 230mm
Adjustable height: lowering 1-3 inch
Coilover overall length Front: 420mm-520mm
Coilover overall length Rear: 520mm-620mm
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: gold
Package included

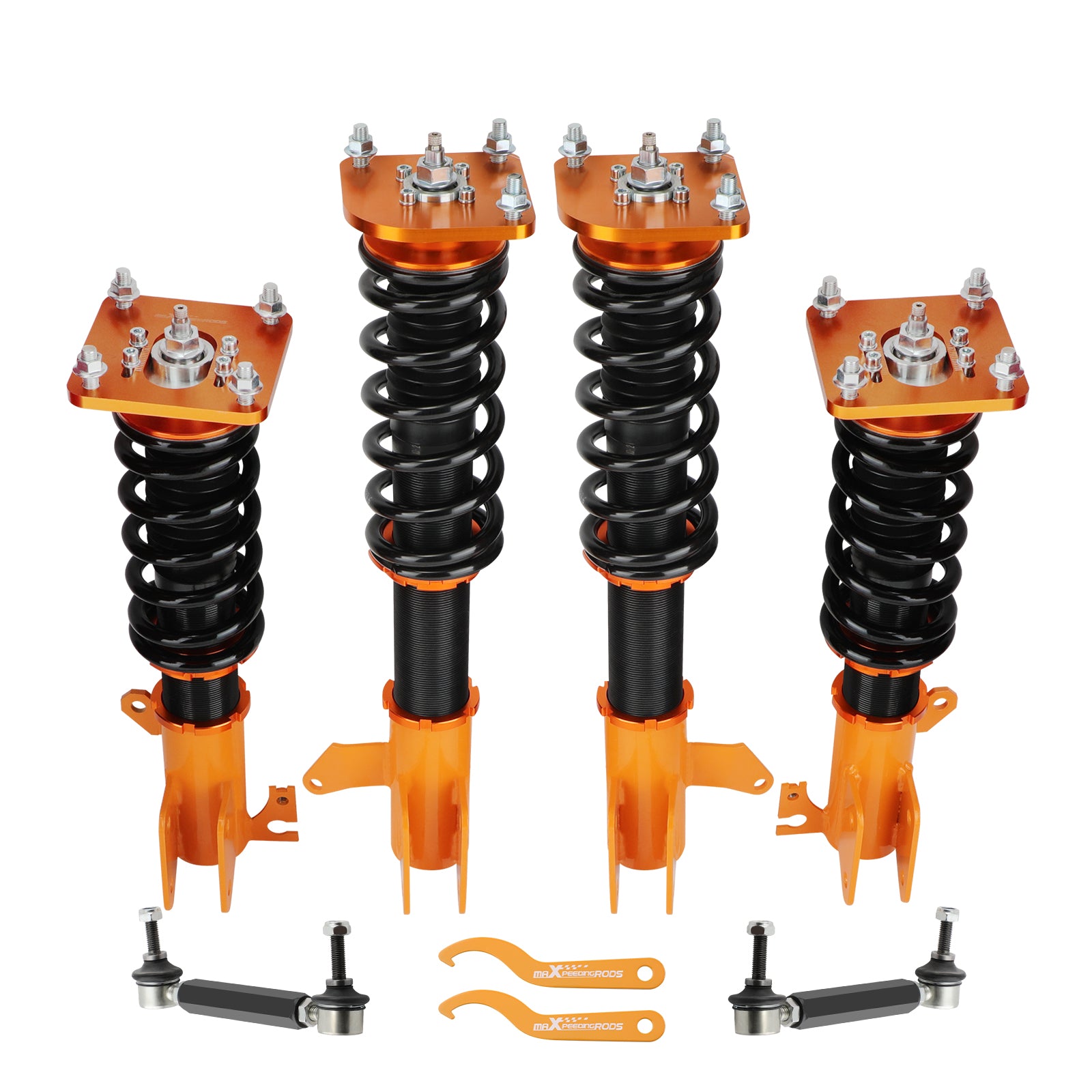

complete coilovers 2 front and 2 rear
a pair wrench for height adjustment
Dimension
weight: 30060g
size: 63*50*20 cm
Feature
1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
3. Twin-Tube structure allows sufficient stroke within the shock absorber.
4. Separate height adjustment does not affect damper stroke.
5. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.
6. Height Adjustment tools included.
7. Camber plate top mounts help to eliminate the need for a separate camber kit.
8. Pillow ball top mount - It improves the steering feel and response.
9. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
10. Full rebuildable.
Note
Notice: not supply front sway bar links, only supply the rear ones.
Warranty: one year warranty for any manufacturing defect
Product Disclaimer:
Emissions Equipment Tampering Warning: In many states, tampering with your vehicle’s emissions equipment is unlawful. Our products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway.
Using our products for street/road use on public roads or highways is prohibited by law unless a specific regulatory exemption exists (more information can be found on the SEMA Action Network website www.semasan.com/emissions for state-by-state details in the USA).
CARB-Restricted Areas: CARB-Restricted products, will not be shipped to state of California under any circumstatences.
Official Air Resource Board Link: ARB State Adoption Link
Customer Responsibility: It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations. Please check with your local vehicle authority before purchasing, using, or installing any of our products.
By proceeding with the purchase and use of our products, customers affirm their commitment to adhere to the terms outlined in this comprehensive product disclaimer. We reserve the right to update this disclaimer as necessary.
