Lexus IS250/IS350 (GSE20/21) RWD 2006-2013 Coilover suspension lowering kit
Application
Compatible For Lexus IS250/IS350 (GSE20/21) RWD 2006-2013
Compatible For Lexus IS F RWD 2008-2014
Compatible For Lexus GS300/GS350 RWD 2007-2011
RWD Only, not fit for AWD
Specification
Top mounts: standard rubber top mount front and rear.
Damping: 24 levels rebound damping adjustable
Front Spring Rate: 12 kg/mm (672 in/lbs).
Rear Spring Rate: 9 kg/mm (504 in/lbs).
Adjustable Height: Yes lowering 1" to 3"
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: Black body with blue spring
Warranty: one year warranty for any manufacturing defect
Package included

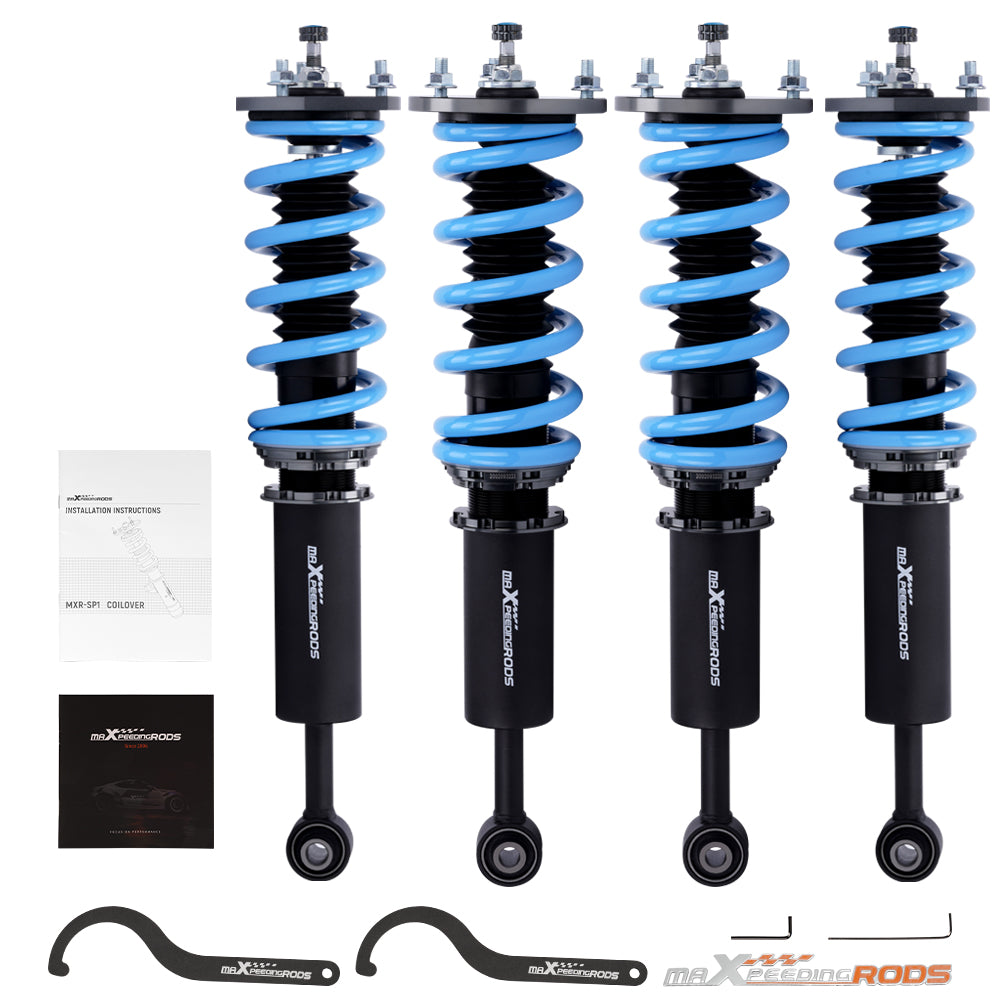

complete coilovers 2 front and 2 rear,a pair wrench for height adjustment
Dimension
Gross weight: 26.28kg
Package size: 71*51*21cm
Feature
1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
2.Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.
3.24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coilovers system. For a nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
4. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions.
5. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
6. Separate height adjustment does not affect damper stroke,Height can be adjusted with coilovers installed on the vehicle.
7.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
8. Height Adjustment tools included.
9. Full rebuildable.
10.Upgraded damper oil---make damping more stable and smooth in wide temperature range.
11.Clean room assembled---maintain higher level of accuracy and reliability.
12.All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.
Product Disclaimer:
Emissions Equipment Tampering Warning: In many states, tampering with your vehicle’s emissions equipment is unlawful. Our products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway.
Using our products for street/road use on public roads or highways is prohibited by law unless a specific regulatory exemption exists (more information can be found on the SEMA Action Network website www.semasan.com/emissions for state-by-state details in the USA).
CARB-Restricted Areas: CARB-Restricted products, will not be shipped to state of California under any circumstatences.
Official Air Resource Board Link: ARB State Adoption Link
Customer Responsibility: It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations. Please check with your local vehicle authority before purchasing, using, or installing any of our products.
By proceeding with the purchase and use of our products, customers affirm their commitment to adhere to the terms outlined in this comprehensive product disclaimer. We reserve the right to update this disclaimer as necessary.
