Coilover Suspension Kits Subaru Legacy 05-09 BL BP Adjustable Damper Shocks lowering kit

Coilover Suspension Kits Subaru Legacy 05-09 BL BP Adjustable Damper Shocks lowering kit

  • $336.00


*** IMPORTANT NOTE: Order processing can take up to 3 business days. Shipping timeframes start after the order processing has been completed. ***

Application

Compatible for Subaru Legacy 2005-2009 (USA) BL9 BP9
compatible for Subaru Legacy B4 2003.05-2009.04JPN BLE BL5
compatible for Subaru Legacy TOURING WAGON 2003.05-2009.04JPN BP5 BPE

Specification

Top mounts: Front pillow ball top mount with camber plate
Damping: 24 levels rebound damping adjustable
Adjustable camber plate: Front only
Spring rate Front: 7 kg/mm (392 lbs/in)
Spring rate Rear: 12 kg/mm (672 lbs/in)
Spring length Front: 200mm
Spring length Rear: 190mm
Adjustable height: lowering 1-3 inch
Coilover overall length Front: 460mm-550mm
Coilover overall length Rear: 400mm-450mm
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: Gold

Package included

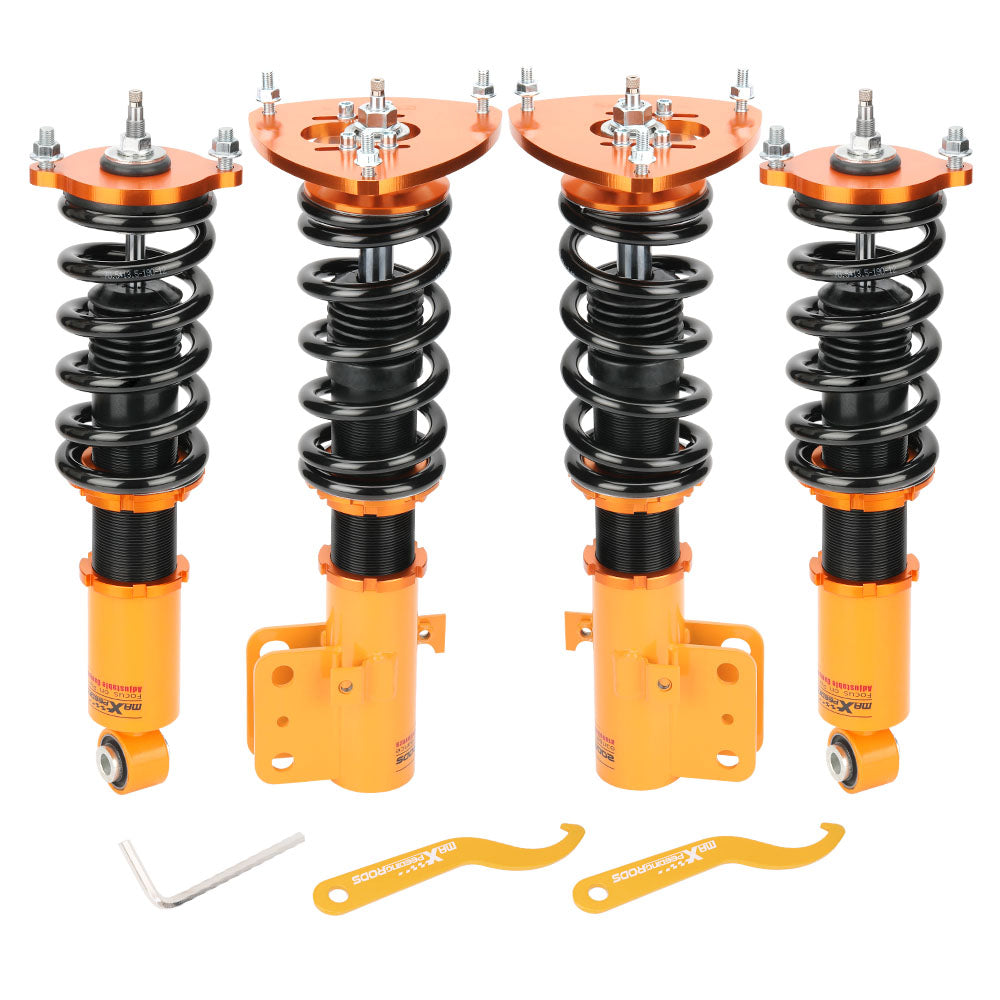

Complete coilover assembly kit for front and rear
A pair wrench for height adjustment

Dimension

Size: 63*51*21 cm
Weight: 24.92 kg

Feature

Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
Camber plate top mounts help to eliminate the need for a separate camber kit.
Pillow ball top mount - It improves the steering feel and response.
Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.
Twin-Tube structure allows sufficient stroke within the shock absorber.
Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
Separate height adjustment does not affect damper stroke.
Height can be adjusted with coilovers installed on the vehicle.
High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
Height Adjustment tools included.
Full rebuildable.

Warranty: one year warranty for any manufacturing defect


Product Disclaimer:

Emissions Equipment Tampering Warning: In many states, tampering with your vehicle’s emissions equipment is unlawful. Our products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway.

Using our products for street/road use on public roads or highways is prohibited by law unless a specific regulatory exemption exists (more information can be found on the SEMA Action Network website www.semasan.com/emissions for state-by-state details in the USA).

CARB-Restricted Areas: CARB-Restricted products, will not be shipped to state of California under any circumstatences.

Official Air Resource Board Link: ARB State Adoption Link

Customer Responsibility: It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations. Please check with your local vehicle authority before purchasing, using, or installing any of our products.

By proceeding with the purchase and use of our products, customers affirm their commitment to adhere to the terms outlined in this comprehensive product disclaimer. We reserve the right to update this disclaimer as necessary.
